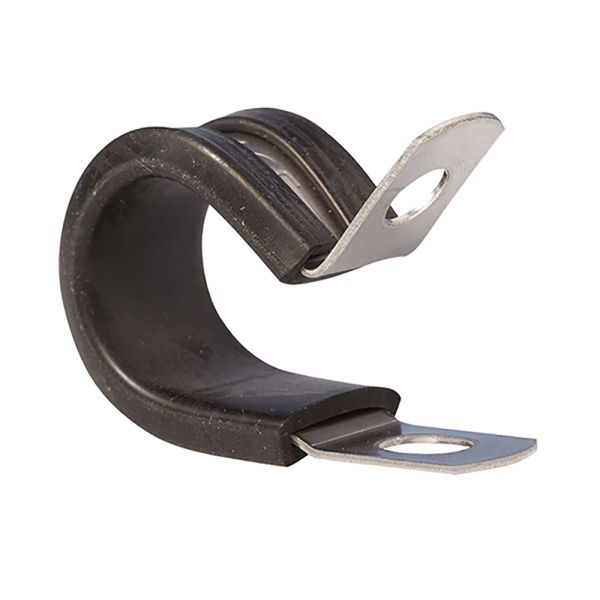

P Clips Mild Steel
Useful Information
Technical Specification
- Brand: Jubilee
- Material: Zinc-plated mild steel with EPDM rubber liner
- Corrosion Resistance: 72-hour NSS test
- Temperature Range: -50°C to +150°C
- Band Width: 12.7mm
- Bolt Fastening: M4/5 bolts
- Manufactured to: DIN 3016
- Minimum Diameter: 4.5mm
- Maximum Diameter: 46mm
- Sold Individually
Description
Designed for secure and reliable clamping, these Jubilee P Clips are constructed from zinc-plated mild steel with a durable EPDM rubber lining, offering strong vibration damping and noise insulation. The one-piece steel band provides exceptional strength, with a stepped profile ensuring a flush fit when mounted. The EPDM liner resists UV degradation, creep, and ozone, making these clips well-suited for demanding environments across automotive, agricultural, and industrial settings. Their elongated mounting hole design simplifies installation and improves flexibility when aligning with bolt fixings.
Key Features & Benefits
- Durable mild steel construction with corrosion-resistant zinc plating
- Flexible EPDM liner ensures a secure grip, noise reduction, and vibration control
- Wide operating temperature range from -50°C to +150°C
- Ideal for use in automotive, agricultural, and general industrial sectors
- Long-lasting resistance to UV, ozone, and environmental ageing
- Halogen-free and compliant with DIN 3016 standard
- Range of sizes available to suit varied applications
- Easy installation via elongated upper fixing hole
- Sold individually for tailored ordering
| Product Code | Max Diameter (mm) | Min Diameter (mm) |
| 387137 | 6 | 4.5 |
| 387138 | 8 | 5.5 |
| 387139 | 10 | 7.5 |
| 387140 | 11 | 8.5 |
| 387141 | 12 | 9.5 |
| 387142 | 14 | 11.5 |
| 387143 | 15 | 12.5 |
| 387144 | 16 | 13.5 |
| 387145 | 17 | 14.5 |
| 387146 | 18 | 15.5 |
| 387147 | 19 | 16.5 |
| 387148 | 20 | 17.5 |
| 387149 | 21 | 18.5 |
| 387150 | 22 | 19.5 |
| 387151 | 23 | 20.5 |
| 387152 | 24 | 21.5 |
| 387153 | 27 | 24.5 |
| 387154 | 29 | 26.5 |
| 387155 | 30 | 27.5 |
| 387156 | 31 | 28.5 |
| 387157 | 32 | 29.5 |
| 387158 | 37 | 34.5 |
| 387159 | 42 | 39.5 |
| 387160 | 46 | 43.5 |
