Electric Actuated

Our ABS metric electric actuated valves provide reliable, automated flow control for industrial and process pipework systems. This range combines high-quality ABS ball valves from Durapipe and Georg Fischer, factory-assembled with robust electric actuators from J+J.

Designed for accuracy, durability and ease of installation, these electrically actuated valves are ideal for applications where remote operation, repeatability and dependable shut-off or flow diversion are required.

All valves in this category are manufactured from acrylonitrile butadiene styrene (ABS) - a tough, lightweight thermoplastic known for its excellent chemical resistance, impact strength and performance across a wide temperature range.

Key valve characteristics:

• Metric plain ends for solvent welding into ABS pipework
• Double union designs for easy removal and maintenance
• Suitable for water treatment, chemical handling and industrial process control
• Available in 2-way and 3-way configurations

Each valve is supplied fully assembled and tested with a J+J electric actuator, offering consistent and dependable automation straight out of the box.

Actuator features include:

• 24–240 V AC/DC auto-sensing supply
• IP67 weatherproof polyamide housing
• Electronic torque limiting for valve protection
• LED position indication
• Manual override for commissioning or power loss
• Fast operation (typically 10 seconds per 90° rotation)

These actuators are suitable for both indoor and outdoor installations and are widely used in demanding industrial environments.

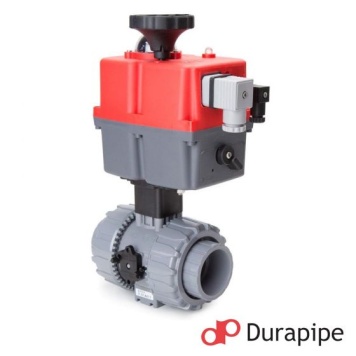

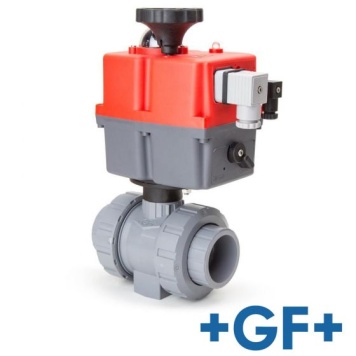

2-way electric actuated ball valves are used primarily for on/off isolation of flow. They are ideal for automated shut-off duties where simple, reliable control is required.

Typical uses:

• Automated isolation
• Remote shut-off
• Process safety control

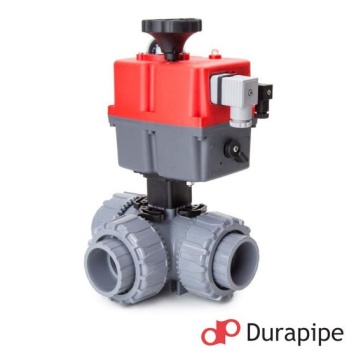

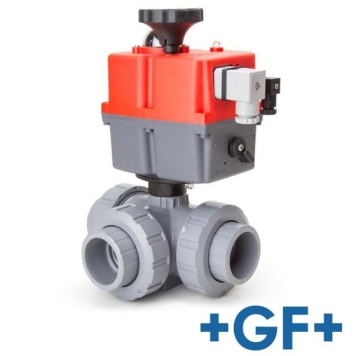

The range also includes 3-way electric actuated valves, available in both L-port and T-port configurations to suit different flow control requirements.

L-Port Valves

• Designed for diverting flow between two outlets
• Best suited to switching and line selection
• Flow is directed to one outlet at a time

T-Port Valves

• Designed for diverting or mixing flow
• Can supply two outlets simultaneously or combine two inlets
• Ideal for more complex process arrangements

Both options are available across Durapipe and Georg Fischer valve platforms, offering flexibility depending on pressure rating, seal material and operating preference.
