Pneumatic Ball Valves

In automated pipe systems where speed, reliability and repeatability matter, pneumatic actuated ball valves provide a robust and cost-effective solution. Designed to deliver fast operation using compressed air, these valves are widely used in industrial process control, water treatment, chemical handling and manufacturing environments.

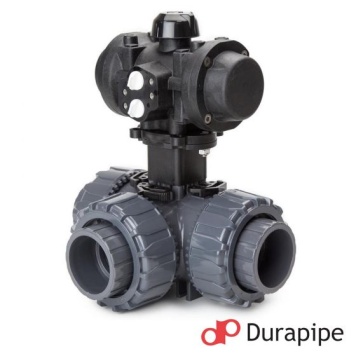

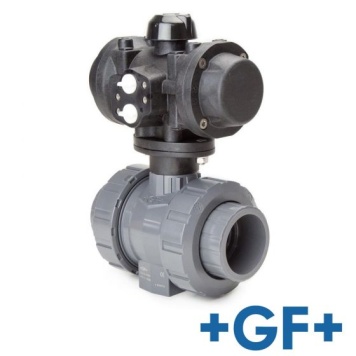

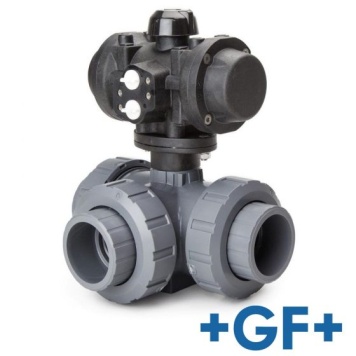

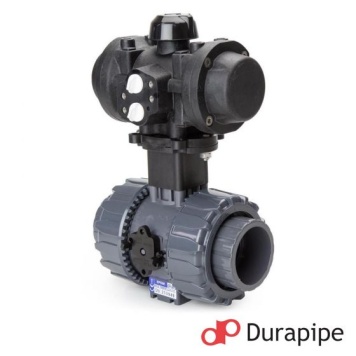

Within this category, we supply high-quality pneumatically actuated ball valves from leading manufacturers, including Georg Fischer and Durapipe, available in 2-way and 3-way configurations to suit a wide range of flow control requirements.

Whether you are upgrading a manual system or designing a fully automated installation, pneumatic actuation offers reliable, low-maintenance performance with excellent response times.

Key Applications Include:

• Industrial water treatment systems
• Chemical dosing and transfer lines
• Compressed air systems

Inside the valve body is a precision-machined ball with a bore through its centre.

• Open position: The bore aligns with the pipeline, allowing full flow.
• Closed position: The ball rotates 90 degrees, blocking the flow completely.

The pneumatic actuator converts air pressure into rotary motion. Depending on the actuator type:

• Double-acting actuators use air to both open and close the valve.
• Spring return actuators use air in one direction and a spring for automatic fail-safe return.

This makes pneumatic actuated valves ideal for applications requiring automatic shut-off during power or air failure.

Both electric and pneumatic actuation have their place, but pneumatic valves offer distinct advantages:

• Faster actuation speed
• High cycle durability
• Suitable for hazardous or explosive environments
• Simpler mechanical design

In environments where compressed air infrastructure already exists, pneumatic actuation is often the most efficient and economical solution.
