Actuated valves are assembled and tested to order, they cannot be returned for refund.

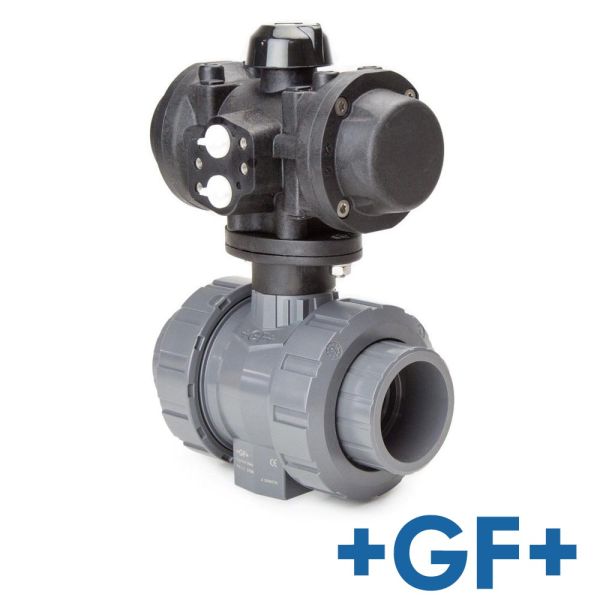

The pneumatic actuator from Prisma offers a rotation angle from 0-90° with a working temperature between -32°C & 90°C and a maximum pilot pressure of 8 bar.
It has a Polyamide body and is SIL2 rated meaning it is free from silicon. It has double-acting torques from 17 to 165.5Nm at 6 bar.
The double union 2-way valves are manufactured by Georg Fischer and offer full WRAS approval across the range.
Supplied with plain ends perfect for use with solvent cement.
They have a PVC body with PTFE seals and offer a maximum working pressure of 16 bar.
|Valve Manufacturer||Georg Fischer|
|Valve Material||Polyvinyl chloride - unplasticised (PVCu)|
|Actuator Power||24 - 240V AC/DC|
|Actuator Approval||ATEX EX112GDc|
|Connection||Plain union ends|
|Sizes||20mm - 63mm|
|20mm and 25mm||32mm to 50mm||63mm|
|Maximum Operational Torque||17Nm to 165Nm at 6 bar||17Nm to 165Nm at 6 bar||17Nm to 165Nm at 6 bar|
|Operating Temperature||-32°C to 90°C||-32°C to 90°C||-32°C to 90°C|
|Air Supply||up to 8 bar||up to 8 bar||up to 8 bar|
|Cycle Time w/o Resistant Torque at 6 bar||0.15secs||0.2secs||0.3secs|
|Rotation Angle||0° to 90°||0° to 90°||0° to 90°|
|Drive Type||Stainless steel 8-point star||Stainless steel 8-point star||Stainless steel 8-point star|
|Approvals||94-9-EC, SIL-3||94-9-EC, SIL-3||94-9-EC, SIL-3|
IMPORTANT: Actuator appearance may differ dependant upon the size ordered.
(Actuator Datasheet PDF)
