Close-Fit System

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Material: Polyethylene
  • Operating temperature range of -20°C to 50°C, dependent on pressure
  • Sizes Available: 32mm/40mm to 110mm/125mm
  • Design life of 30 years
  • UV resistant
  • Dual contained system
  • Suitable for pressure and vacuum fuel applications
  • 'One-weld' transition technology
  • Semi-flexible pipework
  • EN 14125 accreditation

Useful Info:

Durapipe PLX Close-Fit pipework is a dual-contained fusion welded system with self-centering ribs, manufactured from black polyethylene with a protective co-extrusion barrier bore layer used mainly in forecourt and bulk fuelling installations as well as above and below ground applications.

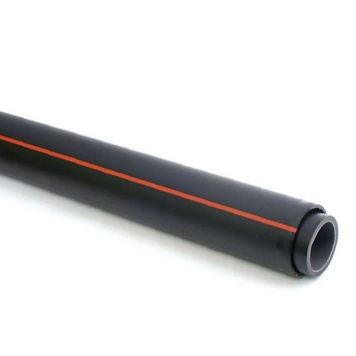

It can be identified as Close-Fit pipework by its red stripes. Due to the secondary containment the user has the ability to monitor for leak detection for added security.

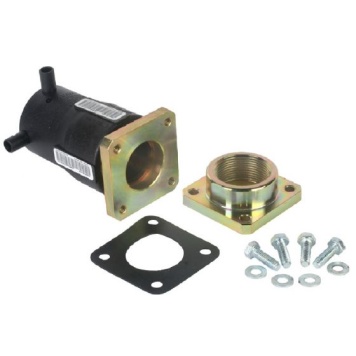

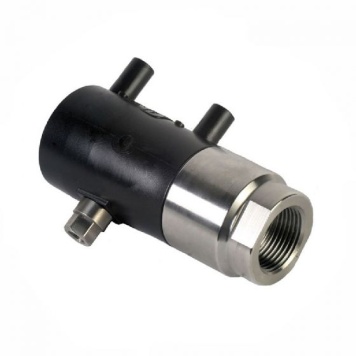

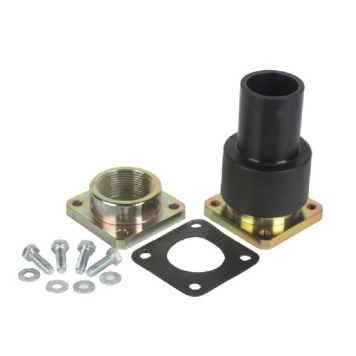

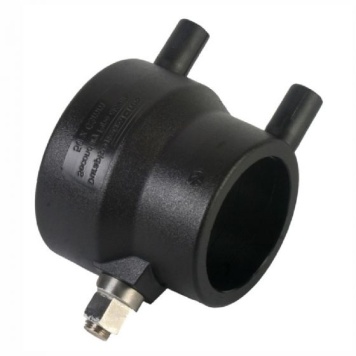

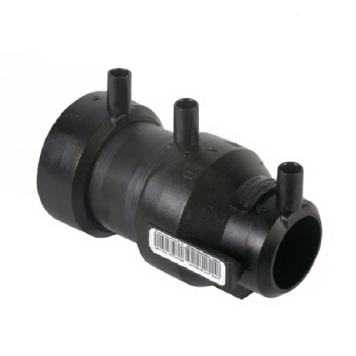

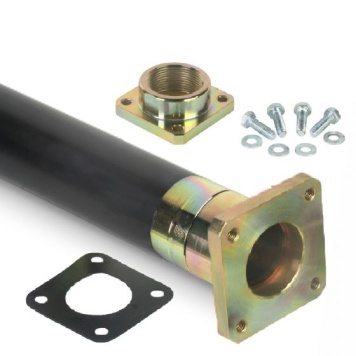

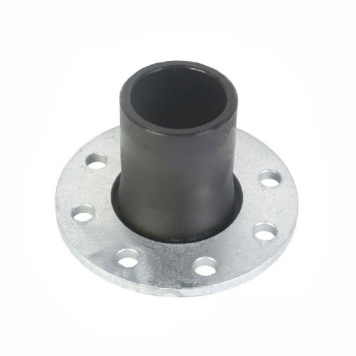

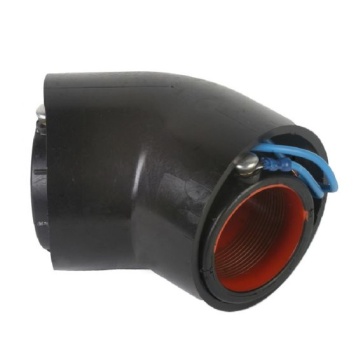

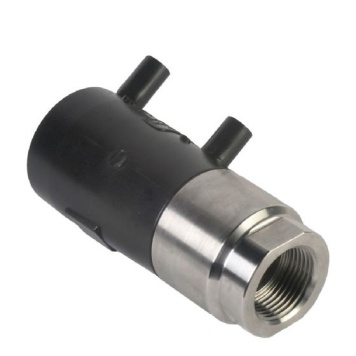

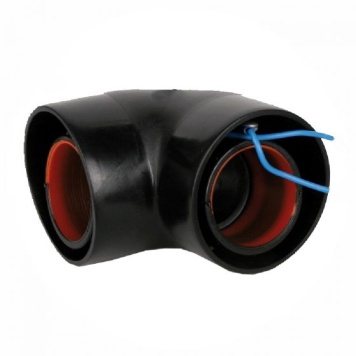

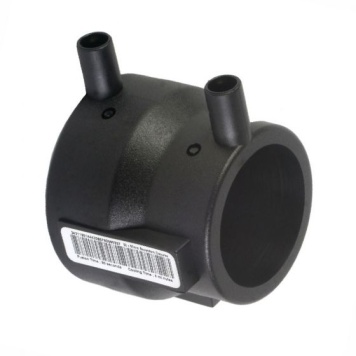

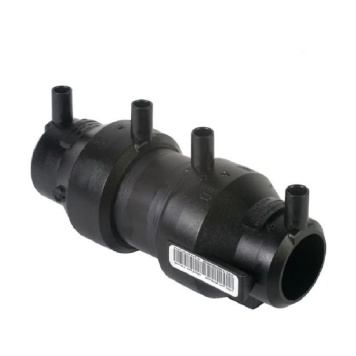

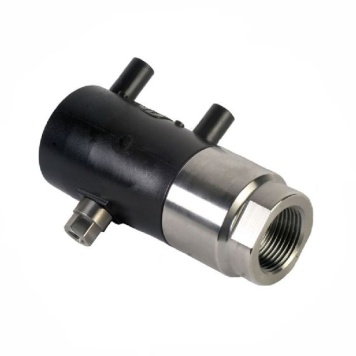

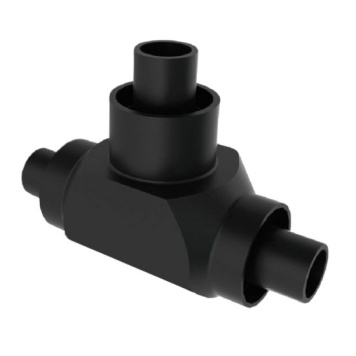

Available within this system are pipe lengths and coils as well as a wide range of electrofusion fittings, pressure rated to 10 bar at an operating temperature of 20°C.
