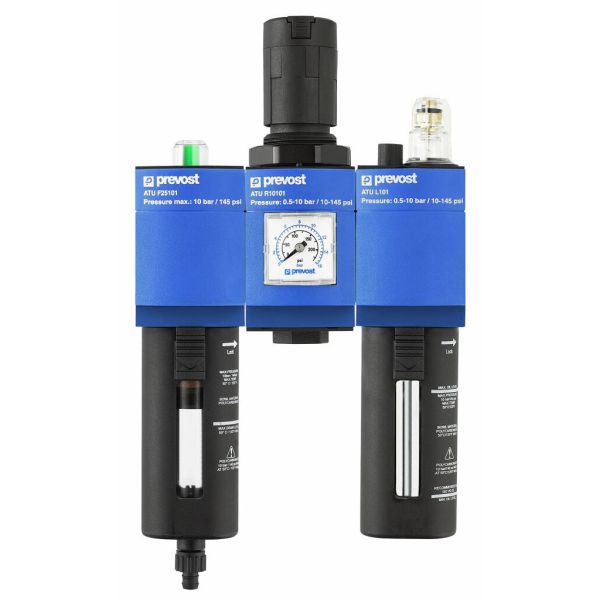

Prevost Filter + Regulator + Lubricator

• Thread Size: G 1/8, G 1/4, G 3/8, G 1/2
• Filtration: 25 µm
• Alternative Filters: 1µm (488798) and 5µm (488800)
• Inlet Pressure Range: 0.8 - 10 bar
• Outlet Pressure Range: 0.5 - 10 bar
• Operating Temperature: +5°C to 50°C
• Connection Type: BSPP Female Thread
• Material Composition:

           Body - Aluminium
           Tank - Polycarbonate with protective casing
           Adjustment Mechanism - High-precision polymer

• Weight: 0.69 kg, 2.13 kg

This 3-in-1 unit integrates a lubricator, filter, and regulator, ensuring optimal air quality, pressure control, and lubrication for pneumatic systems. Designed for industrial applications, it improves system performance by removing contaminants, regulating airflow, and supplying a controlled mist of lubrication to extend the lifespan of pneumatic tools and machinery. The BSPP female thread ensures secure and leak-free connections, making installation seamless.

•  3-in-1 Functionality – Combines air filtration, pressure regulation, and lubrication in a single compact unit.
•  BSPP Female Thread – Ensures reliable and secure connections with standard pneumatic systems.
•  High Filtration Efficiency – Removes solid and liquid contaminants for cleaner compressed air.
•  Precise Pressure Regulation – Maintains consistent outlet pressure, reducing fluctuations.
•  Controlled Lubrication – Supplies a regulated mist of oil to enhance tool performance and longevity.
•  High Flow Capacity – Handles up to 3,500 l/min, making it suitable for demanding applications.
•  Durable Construction – Made from high-quality materials to withstand industrial environments.
•  Easy Installation & Maintenance – Compact and lightweight design for convenient integration into existing air systems.
•  Optimised for Pneumatic Applications – Ideal for air tool operation, automation systems, and industrial compressed air networks.

The Prevost 3 Unit Filter Regulator Lubricator is a complete air preparation system that cleans, controls, and conditions compressed air for your tools.

• Filter – Removes dust, dirt, water, and oil from the air.
• Regulator – Adjusts and maintains the correct air pressure.
• Lubricator – Adds a fine mist of oil to the air to keep tools running smoothly.

Buying the Prevost 3 Unit Filter Regulator Lubricator as one complete unit is better than purchasing the parts separately because it saves space, saves money, simplifies installation, and reduces the risk of leaks between components. It ensures all parts are perfectly matched for efficient performance and makes maintenance easier, giving you clean, controlled, and lubricated air in one compact, reliable system.
