Engineered for precision in water-based spray painting applications, this combination filter regulator provides stable air pressure and reliable filtration to maintain consistent spray quality. Its dual-profile compatibility, supporting both British and European standards, ensures flexible system integration. The unit supports a maximum working pressure of 12 bar and features dual internal passage diameters of 6 mm and 7.4 mm for varied air demand.
Key Features & Benefits
Tailored for Water-Based Paint Systems: Delivers clean, regulated air to optimise atomisation and ensure uniform paint application with minimal overspray or imperfections.
Consistent Pressure Control: Offers adjustable output from 0 to 12 bar, allowing precise regulation to match paint viscosity and equipment specifications.
Strong Flow Rate Performance: Provides up to 916.66 l/min at 7 bar, supporting smooth and uninterrupted spray gun operation.
Dual Internal Passage Options: Accommodates both 6 mm and 7.4 mm ID air lines for adaptable flow control depending on system needs.
Broad Temperature Range: Operates between 5 °C and 50 °C, maintaining reliability in standard workshop environments.
Threaded for Easy Installation: Fitted with 1/2″ BSP female thread for fast and secure connection to a wide range of air tools and accessories.
British and European Profile Compatibility: Ideal for use across multiple regions and equipment types, supporting standardised fitting connections.
SKU
Prevost Code

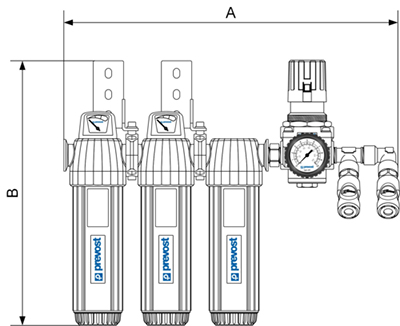

A (mm)
B (mm)
Female Thread (G")
ID Passage (mm)
Outlet 2 Couplings
Flow Rate (in m³/h at 7 bar)
488933
MSCR 55BS
345
440
1/2
6
BSI 06 (British)
45
488934
MSCR 55ES
345
440
1/2
7.4
ESI 07 (European)
55
