Filtration type: Sub-micronic (suitable for water-based paints
Thread type: 1/2″ BSP female
Flow rate:
750.00 l/min at 7 bar
916.66 l/min at 7 bar
Outlet working pressure: 0 to 12 bar
Maximum pressure: 12 bar
Internal passage diameters: 6 mm and 7.4 mm
Operating temperature: 5 °C to 50 °C
Profile: British and European
Description
Designed specifically for water-based paint applications, this combination sub-micronic filter unit includes an integrated antistatic hose extension, offering exceptional air purity and electrostatic control. With a minimum flow rate of 750 l/min and dual internal passage sizes, it ensures a steady, clean air supply to spray guns for consistent paint coverage and surface quality. Its compatibility with both British and European profiles enhances its versatility in professional environments.
Key Features & Benefits
Sub-Micronic Filtration: Effectively removes ultra-fine contaminants and moisture to protect paint finish and spray equipment from clogging or malfunction.
Antistatic Hose Extension: Neutralises static charge during spray operations, reducing the risk of surface dust attraction and paint defects.
Precise Pressure Regulation: Adjustable outlet pressure from 0 to 12 bar, providing fine-tuned control to match paint requirements and spray gun specifications.
Consistent Flow Rate: Supports up to 916.66 l/min at 7 bar, ensuring smooth and continuous airflow essential for uniform paint application.
Dual Passage Sizes: Accommodates both 6 mm and 7.4 mm internal diameters, offering flexibility to match various system demands and spray gun setups.
Temperature Tolerant: Operates reliably from 5 °C to 50 °C, suitable for controlled workshop and finishing room conditions.
Dual Profile Compatibility: Built to meet both British and European standards, supporting a wide range of professional installations.
SKU
Prevost Code

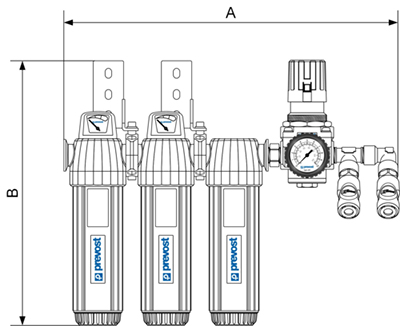

A (mm)
B (mm)
ID Passage (mm)
Female Thread (G")
Outlet 2 Couplings
Flow Rate At 6 Bar (m³/h)
488937
FHK MSCR55BS
345
440
6
1/2
BSI 06 (British)
45
488938
FHK MSCR55ES
345
440
7.4
1/2
ESI 07 (European)
55
