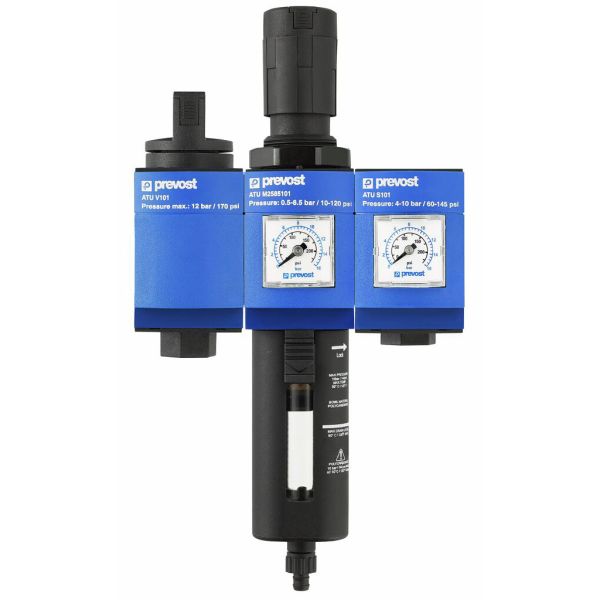

Prevost Valve + Filter Regulator + Soft Start Valve

• Thread Size: G 1/8, G 1/4
• Filtration Options: 25µm
• Alternative Filters: 1µm (488798) and 5 (488800)
• Inlet Pressure Range: 0.8 - 10 bar
• Outlet Pressure Range: 0.5 - 8.5 bar
• Progressive Pressurisation: Gradual air introduction to prevent sudden pressure surges
• Manual Shut-Off Valve: Enables easy isolation of the air supply
• Operating Temperature: +5°C to 50°C
• Connection Type: BSPP Female Thread
• Material Composition:

           Body: Aluminium
           Tank: Polycarbonate with protective casing
           Adjustment Mechanism: High-precision polymer

• Weight: 0.55 kg, 0.69 kg

This 3-in-1 unit combines air filtration, pressure regulation, and progressive pressurisation with a manual valve, ensuring controlled and efficient air management in pneumatic systems. It effectively removes contaminants, maintains precise air pressure, and ensures a gradual and safe pressurisation of pneumatic components to prevent sudden pressure surges. The manual shut-off valve allows easy air supply isolation for maintenance and safety procedures. Designed with BSPP female threads, it ensures secure and reliable connections for industrial pneumatic applications.

•  3-in-1 Functionality – Integrates air filtration, pressure regulation, and progressive pressurisation with a manual shut-off valve for complete air management.
•  BSPP Female Thread – Ensures a secure and leak-free connection with standard pneumatic systems.
•  High Filtration Efficiency – Removes solid and liquid contaminants for cleaner and more efficient compressed air.
•  Precise Pressure Regulation – Maintains consistent and adjustable outlet pressure to prevent fluctuations.
•  Progressive Pressurisation – Gradual air supply introduction prevents sudden movements and protects pneumatic components.
•  Manual Shut-Off Valve – Enables safe and easy isolation of the air supply for maintenance and system adjustments.
•  High Flow Capacity – Handles up to 1,000 l/min, suitable for a wide range of industrial applications.
•  Durable Construction – Made from high-quality aluminium and polycarbonate for long-term reliability.
•  Compact & Lightweight – Easy to install and integrate into compressed air networks.
•  Optimised for Industrial Pneumatic Systems – Ideal for automation, air tool operation, and compressed air applications requiring clean, controlled, and safely pressurised air.

The Prevost Valve + Filter Regulator + Soft Start Valve unit controls, cleans, and safely delivers compressed air to your system.

• Valve – Lets you turn the air supply on or off easily.
• Filter Regulator – Removes dirt and moisture and sets the right air pressure.
• Soft Start Valve – Slowly increases air flow when starting up, preventing sudden pressure surges that could damage tools or equipment.

This combined unit is better than using separate components because it saves space, saves money, simplifies setup, and improves safety. With everything built into one system, there are fewer connections, which means fewer chances for leaks or faults. The soft start valve gently brings the system up to pressure, protecting tools and reducing wear, while the filter regulator ensures clean, steady air - all in one compact, efficient package.
