3-Way Ball Valve Durapipe T-Port

3-Way Ball Valve Durapipe T-Port

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: polypropylene
  • 3-way ball valve metric with plain female ends
  • Pressure rated to 10 bar
  • FPM seal supplied as standard

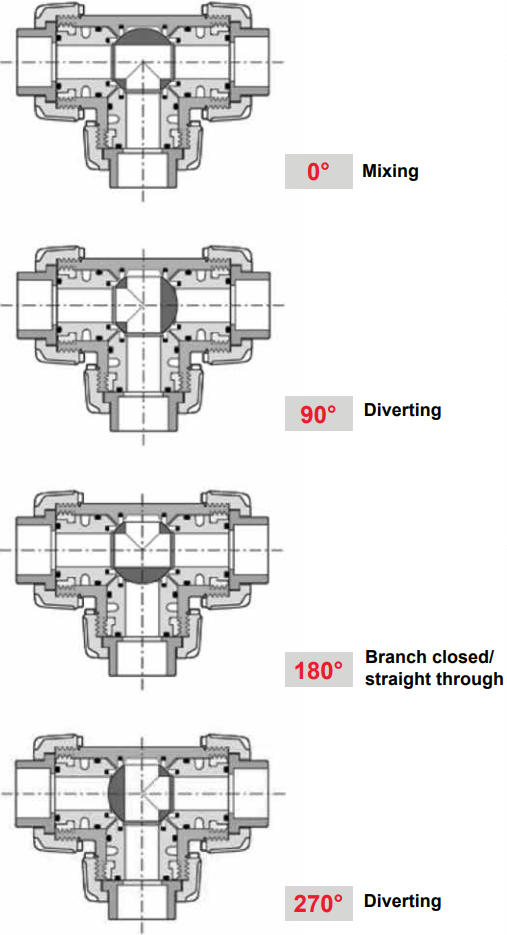

  • T Port
  • Available in sizes from 20mm to 63mm

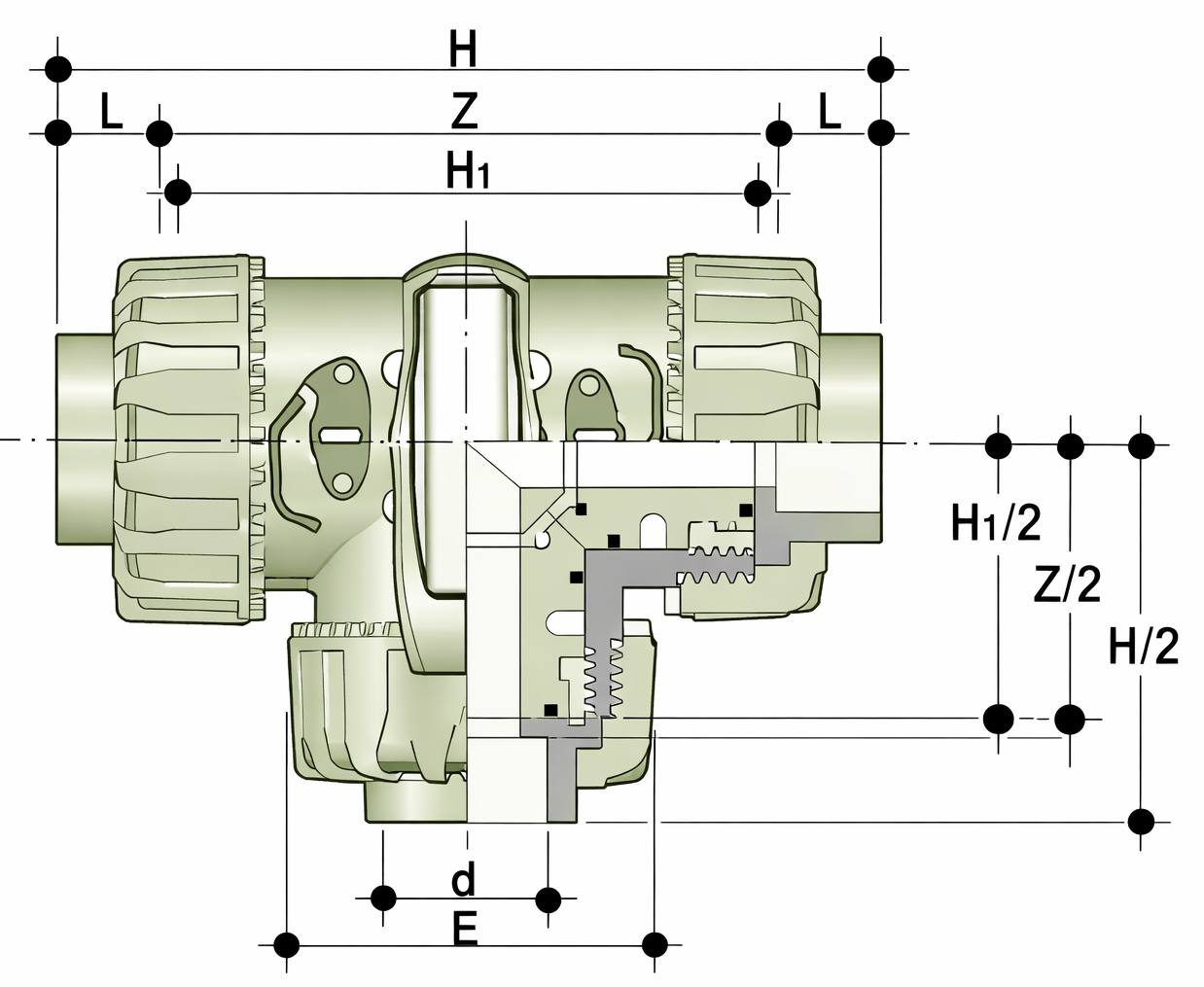

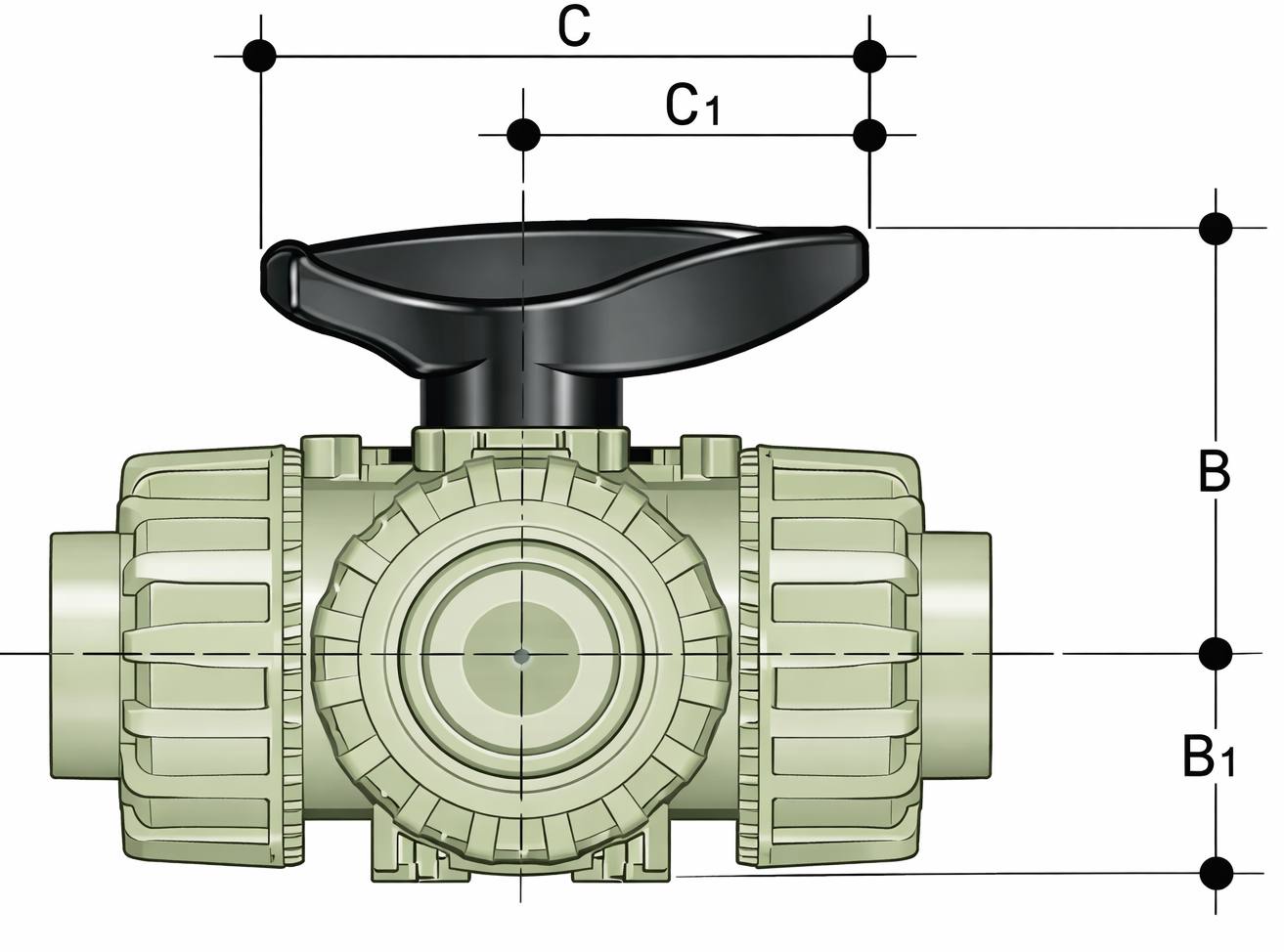

dp 3 way ball valve t port diagram

Product Code d (mm) DN (mm) E (mm) H (mm) H1 (mm) Z (mm) Pressure Rating (bar)
354714 20 15 54 117 80 88 10
354715 25 20 65 114 100 112 10
354716 32 25 73 258 110 122 10
354717 40 32 86 183.5 131 142.5 10
354718 50 40 98 219 148 172 10
354719 63 50 122 266.5 179 211.5 10



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

These T ported 3-way ball valves have 3 female plain ends for socket fusion in a piping system and to control flow.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
DP PPh TKD 3-Way Ball Valve T Port FPM Plain 20mm
Code
354714
Product Name
DP PPh TKD 3-Way Ball Valve T Port FPM Plain 20mm
List Price
£143.94
You Pay
£100.76
You Save
30%
Qty
DP PPh TKD 3-Way Ball Valve T Port FPM Plain 25mm
Code
354715
Product Name
DP PPh TKD 3-Way Ball Valve T Port FPM Plain 25mm
List Price
£168.11
You Pay
£117.68
You Save
30%
Qty
DP PPh TKD 3-Way Ball Valve T Port FPM Plain 32mm
Code
354716
Product Name
DP PPh TKD 3-Way Ball Valve T Port FPM Plain 32mm
List Price
£203.74
You Pay
£142.62
You Save
30%
Qty
DP PPh TKD 3-Way Ball Valve T Port FPM Plain 40mm
Code
354717
Product Name
DP PPh TKD 3-Way Ball Valve T Port FPM Plain 40mm
List Price
£224.96
You Pay
£157.47
You Save
30%
Qty
DP PPh TKD 3-Way Ball Valve T Port FPM Plain 50mm
Code
354718
Product Name
DP PPh TKD 3-Way Ball Valve T Port FPM Plain 50mm
List Price
£390.55
You Pay
£273.39
You Save
30%
Qty
DP PPh TKD 3-Way Ball Valve T Port FPM Plain 63mm
Code
354719
Product Name
DP PPh TKD 3-Way Ball Valve T Port FPM Plain 63mm
List Price
£489.12
You Pay
£342.38
You Save
30%
Qty
6 products
