PVC Short Radius Bend 90° Plain
Technical Specification
- Material: Unplasticised Polyvinyl Chloride (PVCu)
- Sizes: 1/2" to 4"
- Pressure rating: 15 bar
- Temperature range: 5°C to 60°C
- Connection type: Solvent Weld
- Colour: Grey
- Standards:
- WRAS approved
- BSI Kitemark-certified
Description
This PVCu 90-degree long radius bend is designed to change the direction of pipework while maintaining smoother internal flow characteristics. The extended sweep reduces turbulence compared to 90° elbows, making it a strong choice for systems where flow efficiency, pressure stability or minimising wear is important.
Constructed from durable PVCu, the bend resists corrosion, impact and chemical exposure, providing long-term reliability across water systems, industrial processes and general engineering. When installed using PVCu solvent cement and cleaner, it forms a strong, permanent joint, while the smooth internal bore helps maintain flow through the tighter curve.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- Radial curvature: Promotes smoother flow and reduced turbulence.
- Solvent weld jointing: Produces durable, leak-resistant permanent connections
- Corrosion-resistant PVCu: Provides long service life without rust or scale formation
- Smooth internal bore: Helps maintain efficient flow through tight bends
- Imperial sizing compatibility: Suitable for use with all matching imperial PVCu pipe and fittings

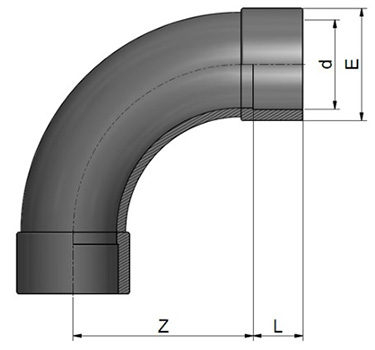

Dimensions
| SKU | Nominal Size (inch) | L (mm) | Z (mm) | E (mm) |
| 356697 | 1/2 | 17 | 39 | 27 |
| 356698 | 3/4 | 20 | 49 | 33 |
| 356699 | 1 | 23 | 63 | 41 |
| 356700 | 1 1/4 | 27 | 80 | 50 |
| 356701 | 1 1/2 | 31 | 100 | 61 |
| 356702 | 2 | 38 | 126 | 76 |
| 359402 | 2 1/2 | 44 | 150 | 90 |
| 356703 | 3 | 51 | 180 | 110 |
| 356704 | 4 | 63 | 220 | 133 |
Downloads
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
