3-Way L-Port Spigot Ball Valve EPDM

Useful Information

PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.

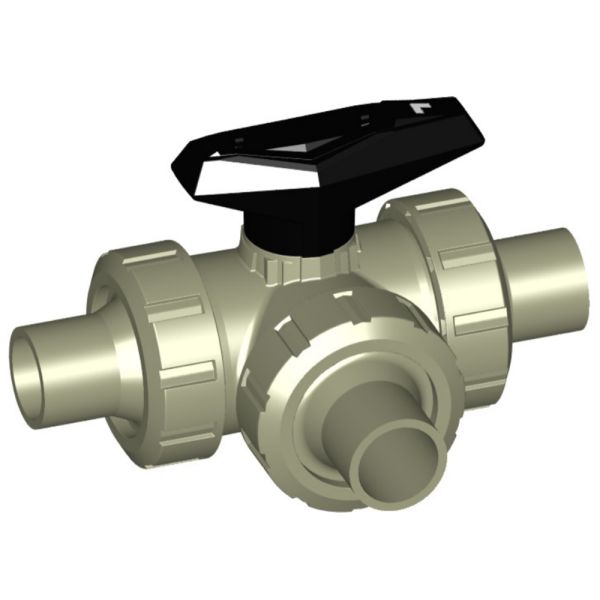

The type 543 3-Way L-Port PROGEF Ball Valve has an enclosed 90° turn limiter and spigot ends for solvent cement jointing to PP-H pipe lengths. It also contains integrated stainless steel mounting inserts, EPDM gaskets and PTFE ball seals.

Manufacturer Georg Fischer
Temperature Range 0°C to 80°C
Pressure Rating

10 Bar

Size Range 20 - 63mm




If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
398123GF PROGEF 3-Way Ball Valve 543 L Port Spigot Ends EPDM 20mm £335.22 0%
£335.22
398124GF PROGEF 3-Way Ball Valve 543 L Port Spigot Ends EPDM 25mm £379.48 0%
£379.48
398125GF PROGEF 3-Way Ball Valve 543 L Port Spigot Ends EPDM 32mm £472.19 0%
£472.19
398126GF PROGEF 3-Way Ball Valve 543 L Port Spigot Ends EPDM 40mm £535.45 0%
£535.45
398127GF PROGEF 3-Way Ball Valve 543 L Port Spigot Ends EPDM 50mm £628.28 0%
£628.28
398128GF PROGEF 3-Way Ball Valve 543 L Port Spigot Ends EPDM 63mm £775.78 0%
£775.78
