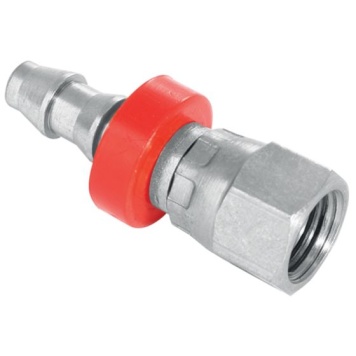

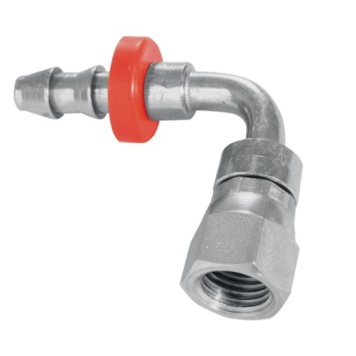

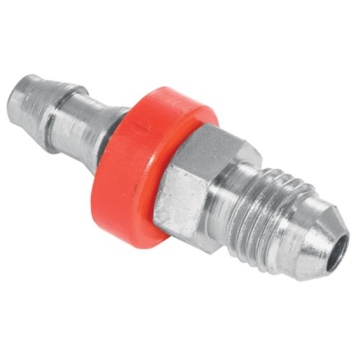

Hose Inserts
When To Use A Hose Insert
A Burnett & Hillman hose insert is used when you need to create a secure, high-pressure connection between a hydraulic hose and another fitting or adaptor. The insert is pushed into the hose bore and normally held in place with a crimp nut, ferrule, swage, or clamp, forming a strong bond that can withstand the pressures and vibrations of hydraulic systems.
You would typically use a hose insert when:
- Connecting a hydraulic hose to a threaded adaptor or coupling, such as BSP, JIC, or Metric ends.
- Building or repairing hydraulic hose assemblies to exact lengths.
- Joining flexible hoses to rigid pipework or components, allowing movement without stressing the system.
- Ensuring a high-pressure seal that can handle the demands of hydraulic flow.
- Applications with vibration or movement, such as mobile machinery, where a rigid pipe alone would be unsuitable.
A Burnett & Hillman hose insert is used to attach a hydraulic hose securely to the rest of the system, making it an essential part of hose assemblies for reliable, leak-free performance.
Key Features & Benefits
- Designed to securely connect hydraulic hoses to fittings or adaptors.
- Provides a strong, high-pressure seal for reliable performance.
- Compatible with crimp nuts, ferrules, swages, or clamps for a tight fit.
- Made from high-quality steel with corrosion-resistant plating.
- Available in a wide range of sizes and thread types to suit different hoses.
- Ideal for building or repairing hose assemblies to custom lengths.
- Ensures a leak-free, durable connection in demanding hydraulic applications.
Connecting Threads Guide
Threads That Match Directly:
- BSPP to BSPP → Seals with a bonded washer or O-ring.
- BSPT to BSPT → Seals on the threads with PTFE tape or sealant.
- NPT to NPT → Seals on the threads with PTFE tape or sealant.
- JIC to JIC → Seals metal-to-metal on the 37° cone seat.
- ORFS to ORFS → Seals on the O-ring face for a leak-free joint.
- SAE O-Ring Boss to SAE O-Ring Boss → Seals with an O-ring at the port face.
- Metric to Metric → Seals with an O-ring or bonded washer.
Sometimes Compatible (with care):
- BSPT male into BSPP female → Will screw in, but must be sealed with a washer or sealant.
- JIC and SAE 37° → Often compatible, both use a 37° flare, but check standards before use.
- JIS BSPP to BSPP → Same thread, but JIS often seals on a 30° cone rather than a washer.
Not Compatible:
- BSP ↔ NPT → Different angles (55° vs 60°), will not seal reliably.
- Metric ↔ BSP/NPT → Different thread form, not interchangeable.
- UNF ↔ BSP/NPT/Metric → Won’t seal unless part of a designed fitting.
- NPSM ↔ anything else → Only seals with a gasket, not designed for high pressure.
Rule of thumb:
- Tapered threads (BSPT, NPT) seal on the thread + tape/sealant.
- Parallel threads (BSPP, Metric, SAE, UNF) need a washer or O-ring.
- JIC and ORFS seal on the face or cone, not the thread.
|
|
BSPP (British Standard Pipe Parallel) |
BSPT (British Standard Pipe Tapered) |
NPT (National Pipe Taper) |
JIC (Joint Industry Council) |
JIS (Japanese Industrial Standard) |
Metric (mm) |
Imperial (") (UN/UNF/UNC) |
SAE (Society Of Automotive Engineers) |
ORFS (O-Ring Face Seal) |
UNF (Unified Fine Thread) |
NPSM (National Pipe Straight Mechanical) |
| Thread Form | Parallel | Tapered | Tapered | Parallel with 37° Cone | BSPP/Metric (Parallel) | Parallel | Parallel | Parallel (UN/UNF) | Parallel (UNF) | Parallel | Parallel |
| Flank Angle | 55° | 55° | 60° | 60° | 55°(BSPP) / 60° (Metric) | 60° | 60° | 60° | 60° | 60° | 60° |
| Sealing Method | Washer / O-Ring | Thread Interference + PTFE Tape | Thread Interference + PTFE Tape | 37° Cone Seat (Metal To Metal) | Gasket Or 30°/60° Cone Seat | Washer / O-Ring | Gasket / O-Ring | O-Ring Boss | O-Ring On The Face | Angled Cone Seat / O-Ring | Gasket |
| Standard | ISO 228 / BS 2779 | ISO 7 / BS 21 | ANSI B1.20.1 (USA) | SAE J514 (USA) | JIS B 0203 / B 2351 | ISO 261 / ISO 724 | ANSI B1.1 (USA) | SAE J1926 | SAE J1453 | ANSI B1.1 (USA) | ANSI B1.20.1 (USA) |
| Applications | Medium-high pressure hydraulics, pneumatics, water systems; common in UK/European machinery | High-pressure pipework (hydraulic, steam, gas, water); widely used in construction | High-pressure hydraulics; common in North American equipment | High-pressure hydraulics (up to ~420 bar); mobile plant, aerospace & automotive | Medium pressure hydraulics & pneumatics; Japanese/Asian machinery & vehicles | Medium-high pressure hydraulics; European industrial, agricultural & mobile equipment |
Low Pressure, for fastening & mechanical joints, not fluid sealing; general engineering & hydraulic systems |
High-pressure hydraulics; common in hydraulic blocks, automotive & aerospace | Very high pressure, leak-free hydraulics; common in agriculture, construction, heavy plant | Medium pressure hydraulics; also used in automotive, aerospace & precision machinery | Low-pressure mechanical joints; used in piping, fire protection & water systems |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
