Thread Type: BSPP (British Standard Pipe Parallel) female swivel
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

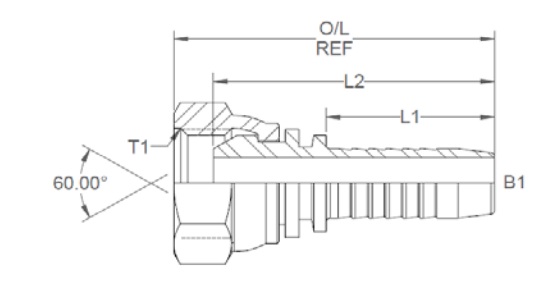

This straight adaptor connects a BSPP female swivel thread with a 60° cone to a hose tail, offering a secure, leak-free connection in hydraulic and fluid transfer applications. The swivel female BSPP design allows easy installation without twisting hoses, while the 60° cone ensures reliable metal-to-metal sealing. Manufactured from high-quality steel to BS EN 10277, this fitting provides robust performance, durability, and long service life in demanding environments.
Key Features & Benefits
Straight Hose Connection: Secure link between hose and BSPP thread
Swivel BSPP Female: Prevents hose damage during installation
Strong Steel Build: Suitable for high-pressure hydraulic systems
Precision Machining: Accurate fit for leak-free operation
Versatile Use: Ideal for hydraulic and fluid transfer systems
ISO Certified Quality: Manufactured under ISO 9001 standards
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code
Female T1 (")
To Suit Hose I.D T2 (")
B1 (")
L1 (")
L2 (")
O/L (")
A/F (mm)
379625
93100
1/4
1/4
0.172
1.105
1.782
1.997
19
379626
93101
3/8
3/8
0.271
1.18
1.972
2.225
22
379627
93102
1/2
1/2
0.375
1.24
2.068
2.35
27
379628
93103
5/8
5/8
-
-
-
-
-
379629
93104
3/4
3/4
0.6
1.555
2.4
2.4
32
379630
93105
1
1
0.797
1.85
2.758
3.195
41
379631
93107
1 1/2
1 1/2
1.312
2.283
3.458
3.93
55
379632
93108
2
2
1.703
2.873
4.09
4.757
70
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
