Thread Type: BSPP (British Standard Pipe Parallel) female swivel
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

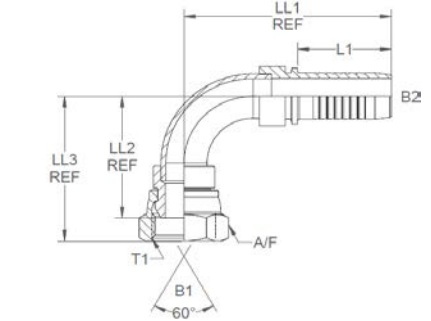

This 90° swept hose tail fitting features a BSPP swivel female thread with a 60° cone for secure metal-to-metal sealing. The swept design ensures smoother fluid flow and reduced turbulence compared to sharp-angled elbows, while also helping to minimise hose wear by reducing bend stress. The swivel function allows for easy installation without twisting the hose. Manufactured from high-quality steel to BS EN 10277 standards, it delivers strength, precision, and long-term reliability in hydraulic and fluid transfer applications.
Swivel Female BSPP Thread: Prevents hose twist during assembly
Steel Construction: Strong and durable for demanding systems
Precision Machined: Complies with BS EN 10277 for accuracy and fit
Better Hose Longevity: Reduces wear from sharp bends
ISO Certified Quality: Produced under ISO 9001 quality standards
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code
Female T1 (")
To Suit Hose I.D T2 (")
B1 & B2 (")
L1 (")
LL1 (")
LL2 (")
LL3 (")
A/F (mm)
379918
93000
1/4
1/4
0.172
1.105
2.08
1.18
1.395
19
379919
93001
3/8
3/8
0.271
1.18
2.312
1.474
1.727
22
379920
93002
1/2
1/2
0.375
1.24
2.625
1.703
1.995
27
379921
93003
5/8
5/8
0.464
1.35
2.897
1.862
2.267
30
379922
93004
3/4
3/4
0.6
1.555
3.325
2.05
2.44
32
379923
93005
1
1
0.843/0.797
1.85
4.13
2.548
3.01
41
379924
93006
1 1/4
1 1/4
1.014
2.158
4.843
3.005
3.44
50
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
