Thread Type: BSPP (British Standard Pipe Parallel) swivel female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description
This swept 45° hose tail fitting features a BSPP swivel female thread with a 60° cone, offering a strong and leak-free metal-to-metal seal. The swept elbow design improves hose routing by reducing bend stress, allowing smoother fluid flow compared to sharp-angled fittings. The swivel connection prevents hose twisting during installation, ensuring a secure and durable hydraulic link. Manufactured from high-quality steel to BS EN 10277 standards, this fitting is designed for long-lasting performance in demanding hydraulic and fluid transfer applications.
60° Cone Seal: Ensures a reliable metal-to-metal connection
Swivel BSPP Female: Simplifies installation without hose twist
Steel Construction: Withstands high pressures and demanding use
Precision Engineering: Complies with BS EN 10277 for accuracy and fit
Versatile Application: Suitable for hydraulic, pneumatic, and fluid systems
ISO Certified Quality: Manufactured under ISO 9001 quality standards
Downloads
Burnett & Hillman Pressure Guide

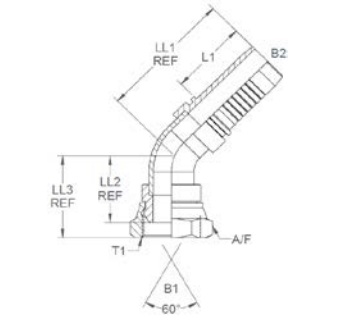

SKU
Product Code
Female T1 (")
To Suit Hose I.D T2 (")
B1 (")
B2 (")
L1 (")
LL1 (")
LL2 (")
LL3 (")
A/F (mm)
380093
94505
1
1
0.843
0.797
1.85
3.188
1.606
2.067
41
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
