BH BSPP Female Swivel x Straight Hose Tail

Loading...
Useful Information

Technical Specification

  • Sizes Available: 1/4" - 1"
  • Material: Steel
  • Hose Connection: Straight hose tail
  • Thread Type: BSPP (British Standard Pipe Parallel) female swivel
  • Standard Compliance: Manufactured to BS EN 10277
  • Temperature Range: -40°C to +120°C without pressure reduction
  • Pressure Ratings:
  • Proof Pressure: 2× working pressure
  • Burst Pressure: 4× working pressure
  • Torque Guidance: For lightly oiled steel threads
  • Quality Assurance: ISO 9001-certified manufacturing

Description

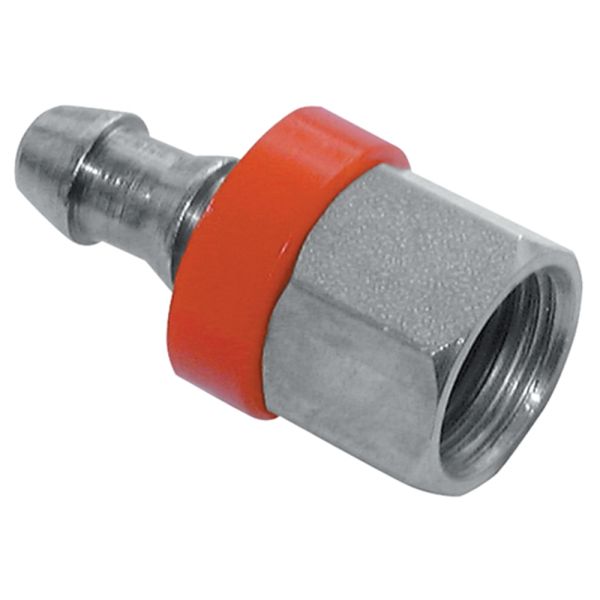

This straight adaptor connects a BSPP female swivel thread to a hose tail, providing a secure and flexible connection between hydraulic hoses and fixed pipework or equipment. The swivel female BSPP thread allows easy installation without twisting the hose, while the hose tail ensures a tight and reliable fit. Manufactured from durable steel to BS EN 10277 standards, this fitting delivers high performance and reliability in hydraulic and fluid transfer systems.

Key Features & Benefits

  • Straight Hose Connection: Simple and secure hose-to-thread link
  • Swivel BSPP Female Thread: Prevents hose twisting during installation
  • Strong Steel Construction: Long-lasting durability in tough environments
  • Precision Machining: Ensures accurate fit and reliable sealing
  • Versatile Application: Suitable for hydraulic and fluid transfer systems
  • ISO Certified Quality: Produced to ISO 9001 manufacturing standards

Downloads

Burnett & Hillman Pressure Guide

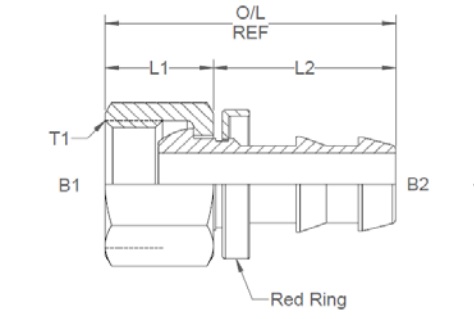

SKU Product Code Female T1 (") To Suit Hose I.D T2 (") B1 & B2 (") L1 (") L2 (") O/L (") A/F (mm)
379617 09240 1/4 1/4 0.156 0.45 0.86 1.3 0.625"
379618 09241 3/8 3/8 0.296 0.57 1.09 1.66 22
379619 09242 1/2 1/2 0.406 0.68 1.145 1.825 24
379620 09243 5/8 5/8 0.464 0.912 1.655 2.662 30
379621 09244 3/4 3/4 0.609 0.89 1.75 2.72 32
379622 09245 1 1 0.75 1.01 1.805 2.915 41



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
Code Product Name List Price You Save You Pay Quantity
379617 BH BSPP Female Swivel x Straight Hose Tail 1/4" x 1/4" £2.67 50%
You Pay:  £1.33
379618 BH BSPP Female Swivel x Straight Hose Tail 3/8" x 3/8" £3.53 50%
You Pay:  £1.77
379619 BH BSPP Female Swivel x Straight Hose Tail 1/2" x 1/2" £4.63 50%
You Pay:  £2.32
379620 BH BSPP Female Swivel x Straight Hose Tail 5/8" x 5/8" £6.17 50%
You Pay:  £3.08
379621 BH BSPP Female Swivel x Straight Hose Tail 3/4" x 3/4" £8.43 50%
You Pay:  £4.22
379622 BH BSPP Female Swivel x Straight Hose Tail 1" x 1" £13.07 50%
You Pay:  £6.53
