Thread Type: BSPP (British Standard Pipe Parallel) swivel female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description
This compact 45° hose tail fitting features a BSPP swivel female thread on both ends with a 60° cone for precise metal-to-metal sealing. Its compact elbow design makes it ideal for space-restricted installations while maintaining smooth fluid flow. The swivel female connections simplify hose installation by preventing twisting, ensuring a secure and durable connection. Manufactured from high-quality steel to BS EN 10277 standards, this fitting delivers strength, precision, and reliable sealing for demanding hydraulic and fluid transfer applications.
Key Features & Benefits
Compact 45° Elbow Design: Perfect for tight-space installations
Durable Steel Construction: Designed for high-pressure environments
Precision Machined: Complies with BS EN 10277 for a perfect fit
Versatile Applications: Suitable for hydraulic, pneumatic, and fluid systems
ISO Certified Quality: Produced under ISO 9001 quality management standards
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

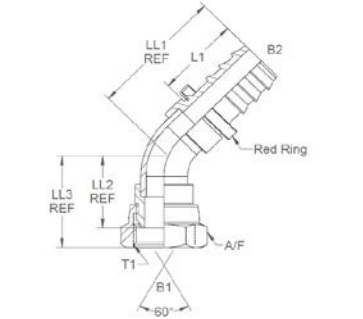

Female T1 (")
To Suit Hose I.D T2 (")
B1 (")
B2 (")
L1 (")
LL1 (")
LL2 (")
LL3 (")
A/F (mm)
380107
19280
1/4
1/4
0.172
0.176
0.89
1.435
0.95
1.165
19
380108
19281
3/8
3/8
0.271
0.296
1.027
1.693
1.126
1.379
22
380109
19282
1/2
1/2
0.375
0.39
1.21
1.972
1.285
1.577
27
380110
19283
5/8
5/8
0.464
0.484
1.655
2.472
1.257
1.662
30
380111
19285
1
1
0.843
0.75
1.81
2.918
1.606
2.067
41
