Thread Type: BSPP (British Standard Pipe Parallel) female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

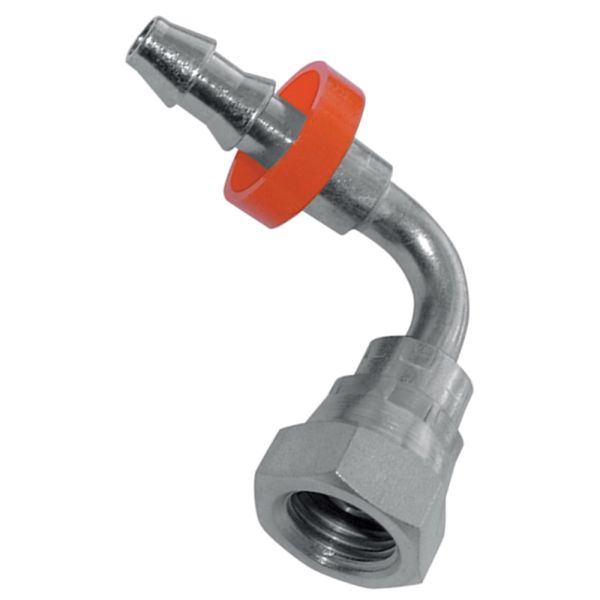

This 90° hose tail fitting connects a BSPP female thread with a 60° cone to a hose, creating a strong and leak-free metal-to-metal seal. The angled design is ideal for applications where hose routing needs to change direction, helping to reduce stress and improve system layout. Manufactured from high-quality steel to BS EN 10277 standards, this fitting delivers durability, precision, and reliable performance in hydraulic and fluid transfer systems.
Key Features & Benefits
90° Hose Tail: Enables directional hose routing in tight spaces
60° Cone Seal: Provides secure and reliable metal-to-metal sealing
Precision Engineering: Conforms to BS EN 10277 for accurate fit
Improved Hose Management: Reduces bending stress and wear
Versatile Applications: Suitable for hydraulic, pneumatic, and fluid systems
ISO Certified Quality: Manufactured under ISO 9001 quality control
Downloads
Burnett & Hillman Pressure Guide

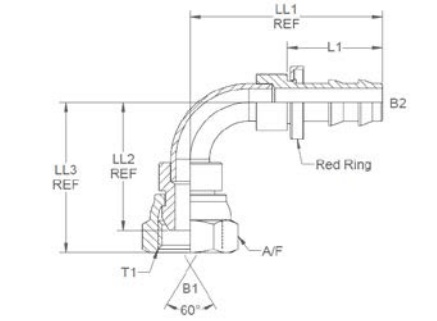

SKU
Product Code
Female T1 (")
To Suit Hose I.D T2 (")
B1 (")
B2 (")
L1 (")
LL1 (")
LL2 (")
LL3 (")
A/F (mm)
379925
09280
1/4
1/4
0.172
0.176
0.89
1.67
1.18
1.395
19
379926
09281
3/8
3/8
0.271
0.296
1.027
1.994
1.474
1.727
22
379927
09282
1/2
1/2
0.375
0.39
1.21
2.391
1.703
1.995
27
379928
09283
5/8
5/8
0.464
0.484
1.655
1.655
1.862
2.267
30
379929
09284
3/4
3/4
0.6
0.6
1.75
3.42
2.1
2.431
32
379930
09285
1
1
0.843
0.75
1.81
3.86
2.548
2.985
41
