Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

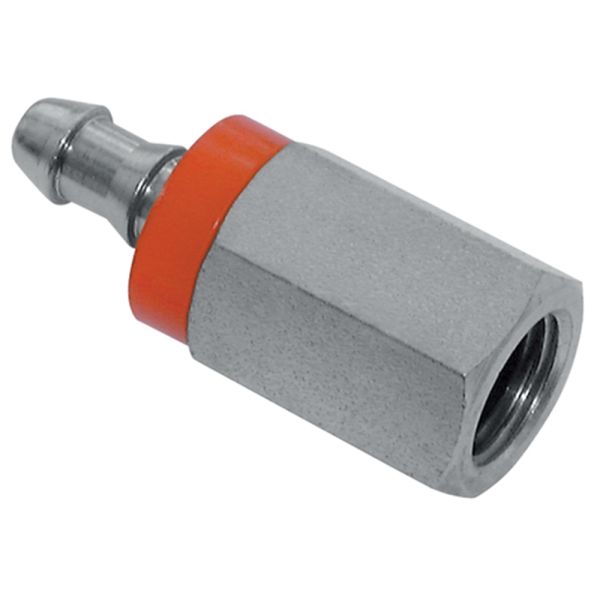

This straight hose tail fitting features a fixed NPT female thread for secure connection to tapered male NPT fittings. Designed for direct hose attachment, it delivers a reliable and leak-resistant joint when used with thread sealant or PTFE tape. Manufactured from high-quality steel to BS EN 10277 standards, this fitting provides durability, precision, and dependable performance for hydraulic, pneumatic, and fluid transfer systems.
Key Features & Benefits
Straight Hose Tail: Direct link from NPT female fitting to hose
High-Quality Steel: Suitable for demanding applications
Precision Machined: Manufactured to BS EN 10277 for accurate fit
Leak Prevention: Use with PTFE tape or sealant for a secure seal
Versatile Use: Ideal for hydraulic, pneumatic, and fluid systems
ISO Certified Quality: Made under ISO 9001 standards
Downloads
Burnett & Hillman Pressure Guide

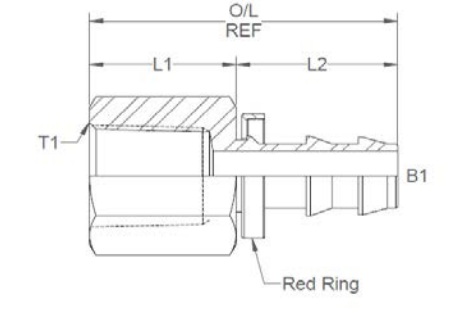

SKU
Product Code
Male Thread T1 (")
To Suit Hose I.D T2 (")
B1 (")
L1 (")
L2 (")
O/L (")

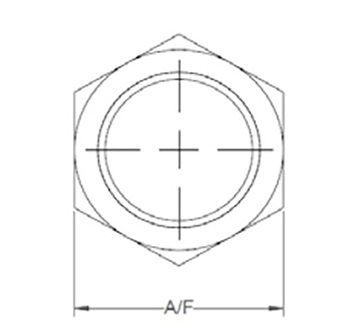

A/F (mm)
379623
16301
3/8
3/8
0.296
1.04
1.027
2.067
22
379624
16302
1/2
1/2
0.39
1.1
1.21
2.31
27
