Thread Type: JIC (Joint Industry Council) swivel female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

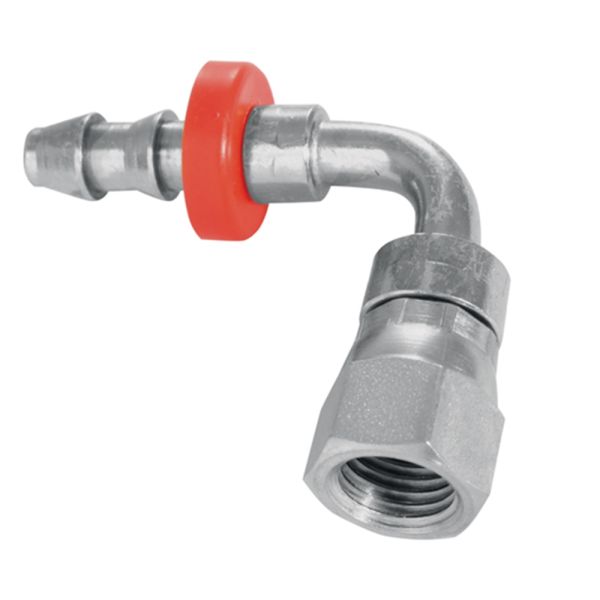

This 90° hose tail fitting features a JIC swivel female thread with a 37° cone for secure, leak-free metal-to-metal sealing. The swivel function allows for easy hose alignment during installation, while the 90° angle provides an efficient change in direction in tight spaces. Manufactured from high-quality steel to BS EN 10277 standards, this fitting ensures strength, precision, and durability for use in hydraulic, pneumatic, and fluid transfer systems.
Key Features & Benefits
90° Hose Tail: Allows compact routing and directional change
Swivel Female Thread: Simplifies installation without hose twisting
High-Quality Steel: Built for demanding hydraulic applications
Precision Machined: Meets BS EN 10277 for accurate fit and sealing
Durable and Reliable: Maintains performance under high pressure
ISO Certified Quality: Produced under ISO 9001 standards
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code
Female Thread T1 (")
To Suit Hose I.D T2 (")

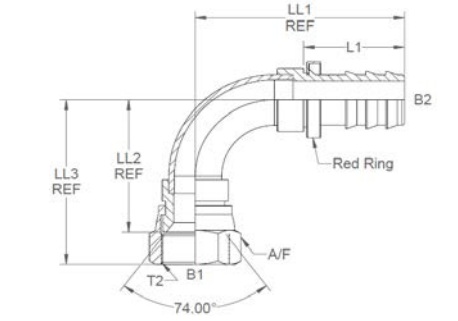

B1 (")
B2 (")
L1 (")
LL1 (")
LL2 (")
LL3 (")
A/F (")
381286
09301
7/16
1/4
0.176
0.176
0.89
1.67
1.086
1.437
0.562
381287
09302
9/16
3/8
0.296
0.296
1.027
2.008
1.322
1.713
0.687
381288
09303
3/4
1/2
0.39
0.39
1.21
2.39
1.663
2.103
0.875
381289
09300
7/8
5/8
0.5
0.484
1.655
3.077
1.895
2.4
1
381290
09304
1 1/16
3/4
0.593
0.6
1.75
3.365
2.127
2.7
1.25
381291
09305
1 5/16
1
0.812
0.75
1.81
3.96
2.611
3.291
1.5
