Thread Type: BSPT (British Standard Pipe Taper) male
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

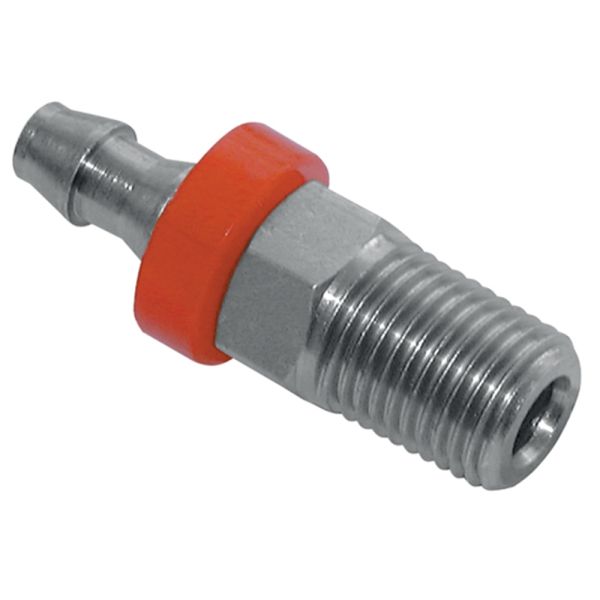

This straight hose tail fitting features a BSPT male thread with a 60° cone for secure metal-to-metal sealing. Designed for direct connection between a tapered BSPT port and a hose, it delivers a strong, leak-free joint suitable for high-pressure hydraulic and fluid transfer systems. Manufactured from high-quality steel to BS EN 10277 standards, it ensures long-lasting durability and precision fit for reliable performance.
Key Features & Benefits
Straight Hose Connection: Direct link from BSPT male to hose
60° Cone Seal: Ensures a strong, leak-free connection
BSPT Taper Thread: Provides secure engagement under pressure
High-Quality Steel: Built for demanding hydraulic applications
Precision Machined: Conforms to BS EN 10277 for accurate fit
Reliable Performance: Suitable for high-pressure fluid systems
ISO Certified Quality: Manufactured under ISO 9001 standards
Downloads
Burnett & Hillman Pressure Guide

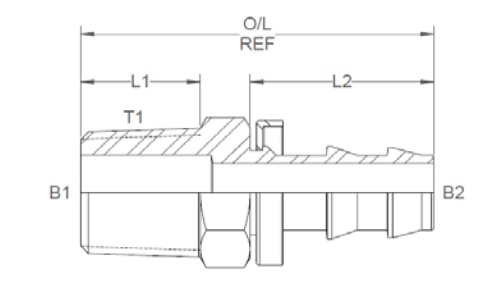

SKU
Product Code
Thread T1 (")
To Suit Hose I.D T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F (")
379638
09258
1/8
1/4
0.188
0.176
0.41
0.89
1.5
0.437
379639
09251
3/8
3/8
0.375
0.296
0.59
1.027
1.937
0.687
379640
09252
3/8
1/2
0.375
0.375
0.59
1.18
2.09
0.687
379641
09253
1/2
1/2
0.5
0.39
0.77
1.18
2.33
22mm
379642
09255
1
1
0.875
0.75
0.99
1.825
3.315
1.375
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
