Thread Type: BSPP (British Standard Pipe Parallel) male
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description
This straight hose tail fitting features a BSPP male thread with a 60° cone, ensuring a reliable metal-to-metal seal for hydraulic and fluid transfer systems. Ideal for connecting hoses directly to BSPP ports, it offers a secure, leak-free joint that withstands high pressures. Precision-engineered from durable steel to BS EN 10277 standards, this fitting delivers consistent performance and long service life, even in demanding industrial environments.
Key Features & Benefits
Straight Hose Tail: Simple, direct connection from BSPP port to hose
Durable Steel Build: Suitable for high-pressure hydraulic applications
Precision Machined: Conforms to BS EN 10277 for an accurate fit
Easy Installation: Straight design for quick hose attachment
Versatile Use: Suitable for hydraulic, pneumatic, and fluid systems
ISO Certified Quality: Manufactured under ISO 9001 quality standards
Downloads
Burnett & Hillman Pressure Guide
SKU

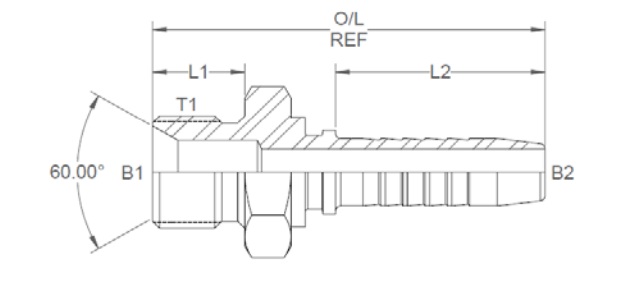

Product Code
Male T1 (")
To Suit Hose I.D T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F (mm)
379643
19920
1/4
1/4
0.197
0.156
0.433
1.105
2.093
19
379644
19921
3/8
3/8
0.375
0.271
0.472
1.18
2.304
22
379645
19922
1/2
1/2
0.472
0.375
0.552
1.29
2.58
27
379646
19923
5/8
5/8
0.551
0.472
0.63
1.412
2.776
30
379647
19924
3/4
3/4
0.609
0.609
0.75
1.555
3.055
32
379648
19925
1
1
0.843
0.797
0.8
1.85
3.43
41
379649
19927
1 1/4
1 1/4
1.203
1.03
0.8
2.158
3.793
50
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
