Thread Type: JIC (Joint Industry Council) swivel female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

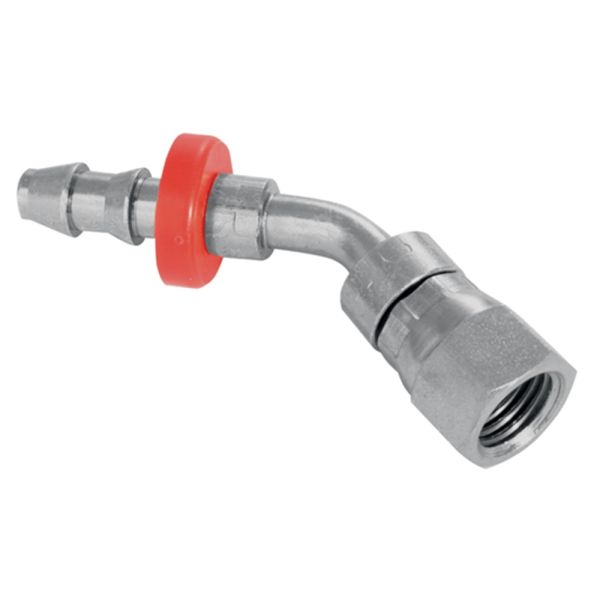

This swept 45° hose tail fitting features a JIC swivel female thread with a 37° cone for dependable metal-to-metal sealing. The swivel design allows for easy alignment without twisting the hose, while the swept elbow shape reduces flow restriction and minimises hose wear. Ideal for hydraulic and fluid transfer systems where a change of hose direction is required, this fitting is precision-engineered from high-grade steel to BS EN 10277 standards for durability and long-lasting performance.
Key Features & Benefits
Swept 45° Hose Tail: Improves flow and reduces hose stress
37° Cone Seal: Ensures a secure and leak-free metal-to-metal joint
Swivel Female Thread: Enables easy installation and alignment
Durable Steel Build: Suitable for heavy-duty hydraulic applications
Precision Machined: Complies with BS EN 10277 for an exact fit
Enhanced Hose Life: Minimises wear from tight bends
ISO Certified Quality: Manufactured under ISO 9001 standards
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

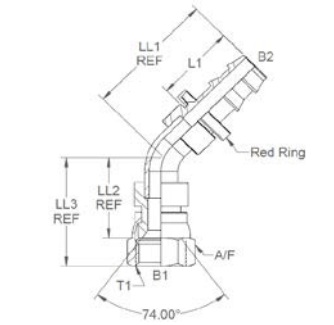

Female Thread T1 (")
To Suit Hose I.D T2 (")
B1 (")
B2 (")
L1 (")
LL1 (")
LL2 (")
LL3 (")
A/F (")
381292
09320
7/16
1/4
0.176
0.176
0.89
1.435
0.853
1.207
0.562
381293
09321
9/16
3/8
0.296
0.296
1.027
1.646
0.974
1.365
0.687
381294
09322
3/4
1/2
0.39
0.39
1.21
1.972
1.245
1.685
0.875
381295
09323
7/8
5/8
0.5
0.484
1.655
2.472
1.292
1.796
1
381296
09324
1 1/16
3/4
0.593
0.6
1.75
2.671
1.433
2.007
1.25
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
