Thread Type: BSPP (British Standard Pipe Parallel) male
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

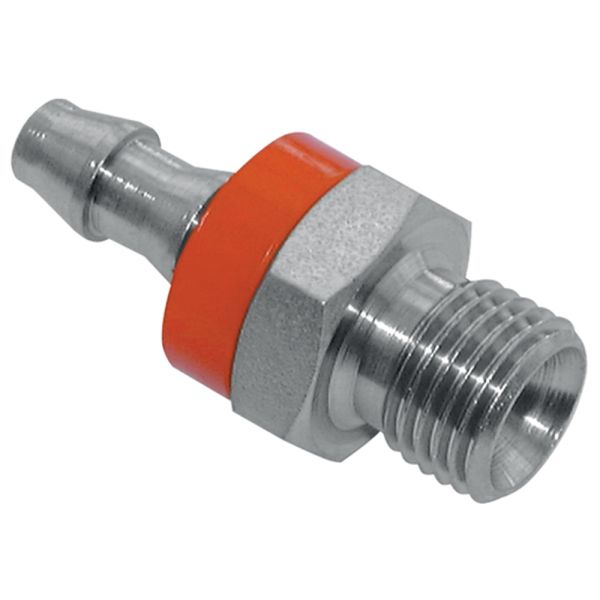

This straight hose tail fitting features a BSPP male thread with a 60° cone, providing a secure metal-to-metal seal for leak-free hydraulic connections. It is designed for direct attachment between BSPP ports and hoses, ensuring a strong and durable link in high-pressure hydraulic and fluid transfer systems. Manufactured from high-quality steel to BS EN 10277 standards, it delivers precision fit, strength, and reliable performance in demanding applications.
Key Features & Benefits
Straight Hose Tail: Simple and efficient hose connection
60° Cone Seal: Provides a robust and leak-free metal-to-metal joint
BSPP Parallel Thread: Ensures secure fitting and consistent engagement
Durable Steel Construction: Designed for heavy-duty hydraulic use
Precision Engineering: Meets BS EN 10277 standards for accuracy
Versatile Application: Suitable for hydraulic, pneumatic, and fluid systems
ISO Certified Quality: Manufactured under ISO 9001 quality processes
Downloads
Burnett & Hillman Pressure Guide

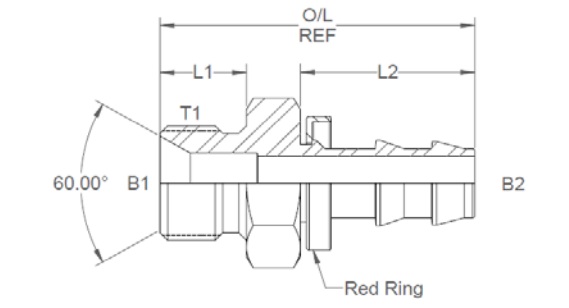

SKU
Product Code
Male T1 (")
To Suit Hose I.D T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F (mm)
379633
09220
1/4
1/4
0.25
0.176
0.45
0.89
1.59
19
379634
09221
3/8
3/8
0.375
0.296
0.52
1.027
1.847
22
379635
09222
1/2
1/2
0.437
0.39
0.6
1.21
2.185
27
379636
09223
3/4
3/4
0.659
0.6
0.75
1.75
2.9
32
379637
09224
1
1
0.875
0.75
0.8
1.825
3.125
41
