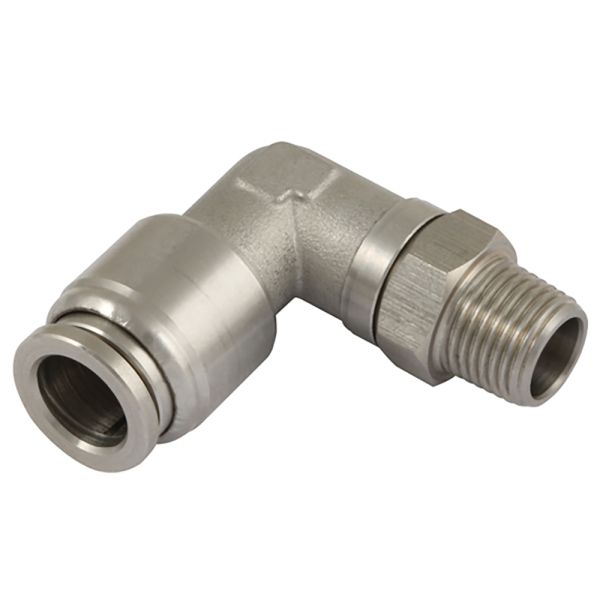

Kelm Stainless Steel Stud Swivel Elbow 90° M

Loading...
main product photo
More Info
Useful Information

Technical Specification

  • Material: 316 stainless steel body and collet, FKM O-ring
  • Tube Compatibility: PU and nylon
  • Media: Compressed air, steam, water, vacuum and other compatible liquids
  • Connection Type: Tube x BSPT male thread
  • Maximum Working Pressure: 10 bar
  • Operating Temperature: -20°C to +200°C

Description

This compact 90 degree swivel elbow provides a secure and adaptable solution for routing tubing in confined or angled installations. The one touch push in connection allows quick assembly and removal, supporting efficient system maintenance. Its 316 stainless steel construction ensures robust performance and excellent corrosion resistance in demanding industrial environments.

Key Features & Benefits

  • Instant connection: One touch mechanism allows rapid tube engagement with no tools required
  • Easy disconnection: Light pressure on the collet ring releases the tube quickly
  • Swivel design: Provides flexible positioning for improved tube routing
  • Corrosion resistant construction: 316 stainless steel body and collet ensure long service life
  • Wide media compatibility: Suitable for compressed air, steam, water and other compatible liquids
  • High temperature capability: Operates reliably from -20°C to +200°C
  • Secure threaded seal: BSPT male thread delivers a dependable connection



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



More Info
Grouped product items
Code Product Name List Price You Save You Pay Quantity
378489 KM SS Male Stud Swivel Elbow BSPT 4mm x 1/8" £64.84 50%
You Pay:  £32.42
378490 KM SS Male Stud Swivel Elbow BSPT 6mm x 1/8" £68.72 50%
You Pay:  £34.36
378491 KM SS Male Stud Swivel Elbow BSPT 6mm x 1/4" £55.76 50%
You Pay:  £27.88
378492 KM SS Male Stud Swivel Elbow BSPT 8mm x 1/8" £59.44 50%
You Pay:  £29.72
378493 KM SS Male Stud Swivel Elbow BSPT 8mm x 1/4" £60.40 50%
You Pay:  £30.20
378494 KM SS Male Stud Swivel Elbow BSPT 10mm x 1/4" £68.32 50%
You Pay:  £34.16
378495 KM SS Male Stud Swivel Elbow BSPT 10mm x 3/8" £70.80 50%
You Pay:  £35.40
378496 KM SS Male Stud Swivel Elbow BSPT 12mm x 1/2" £86.08 50%
You Pay:  £43.04
