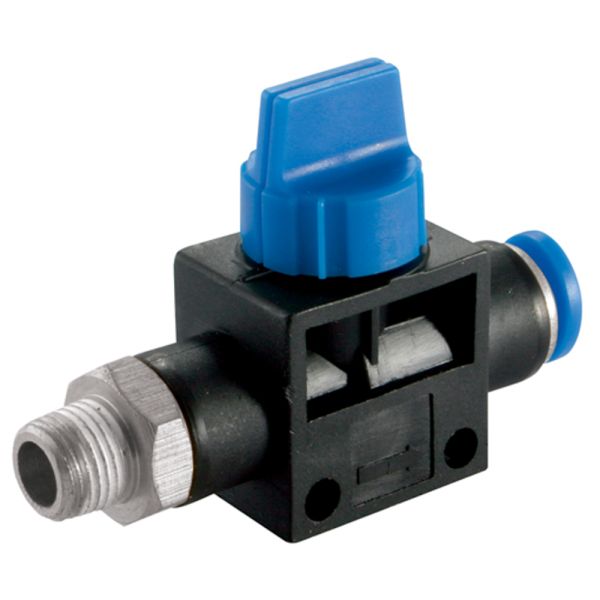

Kelm Manual Shut Off Valve Tube x BSPT
Useful Information
Key Features / Tech Specs:
- Material: Nickle Plated Brass
- Media: Air and Vacuum Only
- BSPT Male Thread
- Max. Pressure 10 bar
- Operating Temperature: 0°C to +60°C
| Product Code | D (mm) | R (inch) | C (mm) | E (mm) | L (mm) | A (mm) | H (mm) | K (mm) | d (mm) | B1 (mm) | B2 (mm) | F (mm) |
| 366307 | 6 | 1/8 | 15.6 | 25.5 | 32.5 | 7.5 | 14 | 16.7 | 4.2 | 40.3 | 36.8 | 16.5 |
| 366308 | 6 | 1/4 | 15.6 | 25.5 | 34 | 9 | 14 | 16.7 | 4.2 | 40.3 | 36.8 | 16.5 |
| 366309 | 8 | 1/4 | - | - | - | - | - | - | - | - | - | - |
| 366310 | 8 | 3/8 | 18 | 25.8 | 35.5 | 11 | 17 | 16.7 | 4.2 | 40.6 | 36.8 | 16.5 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Useful Info:
One-touch fittings provide convenient instant connection and disconnection with no tools required.
Tapered fittings are precoated with Teflon sealant.
Nickel-plated brass fittings ensure long product life.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
