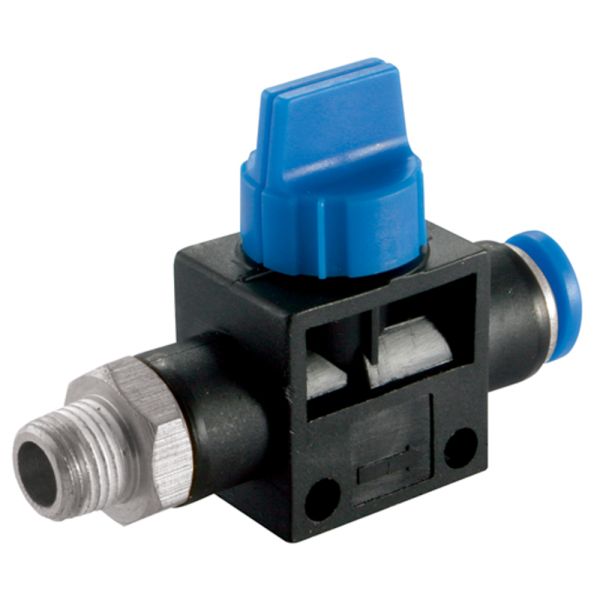

Manual Flow Control Valve Tube x NPT

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Material: Nickle Plated Brass
  • Media: Air and Vacuum Only
  • BSPT Male Thread
  • Max. Pressure 10 bar
  • Operating Temperature: 0°C to +60°C

manual flow control valve tube x npt

Product Code D (mm) R (inch) P (mm) A (mm) B1 (mm) B2 (mm) C (mm) E (mm) F (mm) H (mm) K (mm) d (mm)
366883 6 1/8 14.5 8 40.3 37 15.6 25.5 17 14 16.7 4.2
366884 6 1/4 14.5 11 40.3 37 15.6 25.5 17 14 16.7 4.2
366885 6 3/8 14.5 13 40.3 37 15.6 25.5 17 17 16.7 4.2
366886 8 1/8 14.5 8 40.3 37 18 25.8 17 14 16.7 4.2
366887 8 1/4 14.5 11 40.3 37 18 25.8 17 14 16.7 4.2
366888 8 3/8 14.5 13 40.3 37 18 25.8 17 17 16.7 4.2



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

One-touch fittings provide convenient instant connection and disconnection with no tools required.

Fittings are precoated with Teflon sealant.

Nickel-plated brass fittings ensure long product life.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
366883KM Manual Flow Control Valve Metric x NPT 6mm x 1/8" £20.95 60% £8.38
366884KM Manual Flow Control Valve Metric x NPT 6mm x 1/4" £24.95 60% £9.98
366885KM Manual Flow Control Valve Metric x NPT 6mm x 3/8" £26.30 60% £10.52
366886KM Manual Flow Control Valve Metric x NPT 8mm x 1/8" £26.25 60% £10.50
366887KM Manual Flow Control Valve Metric x NPT 8mm x 1/4" £24.95 60% £9.98
366888KM Manual Flow Control Valve Metric x NPT 8mm x 3/8" £26.30 60% £10.52
