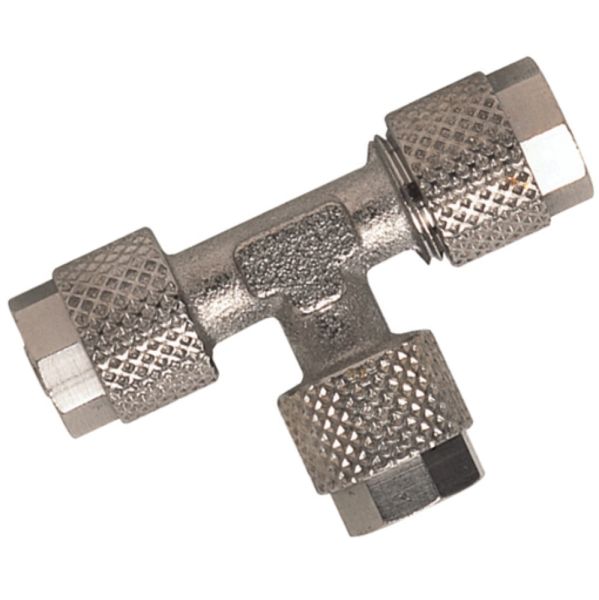

Kelm Tee 90°
Useful Information
Technical Specification
- Body material: Nickel plated brass
- Temperature range: -20°C to +80°C
- Maximum pressure: 15 bar
- Connection type: Equal tube x tube x tube, 90 degree tee
- Compatible tube materials: PA6, PA12 and polyurethane
- Minimum pressure: -0.99 bar
- Fluids: Compressed air, low pressure compatible fluids and liquids
Description
Designed to branch pneumatic flow at a right angle, this tee provides a secure three-way tube connection using a reliable quick fit mechanism. The nickel plated brass construction ensures strong resistance to corrosion and mechanical wear, delivering dependable long term service in demanding pneumatic environments. Assembly is achieved by feeding the tube through the locking nut and onto the fitting cone before tightening, allowing fast installation and consistent sealing with a variety of compatible plastic tube types.
Key Features & Benefits
- Three way distribution: Enables a 90 degree branch for efficient pneumatic system layout
- Robust construction: Nickel plated brass body ensures durability and resistance to corrosion
- Reliable sealing: Maintains airtight performance across a wide pressure and temperature range
- Quick installation: Push-on design supports fast assembly and reduced downtime
- Versatile compatibility: Suitable for use with multiple plastic tube materials commonly used in pneumatic systems
- Strong operating performance: Rated for pressures up to 15 bar and temperatures from -20°C to +80°C
| Product Code | Tube | A (inch) | B | CH2 |
| 370352 | 4/2.7 | 40 | 20.5 | 8 |
| 370353 | 5/3 | 41.2 | 20.6 | 8 |
| 370354 | 6/4 | 41.2 | 20.6 | 8 |
| 370355 | 8/6 | 43.8 | 21.9 | 9 |
| 370356 | 10/8 | 51 | 25.5 | 11 |
| 370357 | 12/10 | 54 | 28 | 13 |
| 370358 | 15/12.5 | 63 | 32.5 | 16 |
