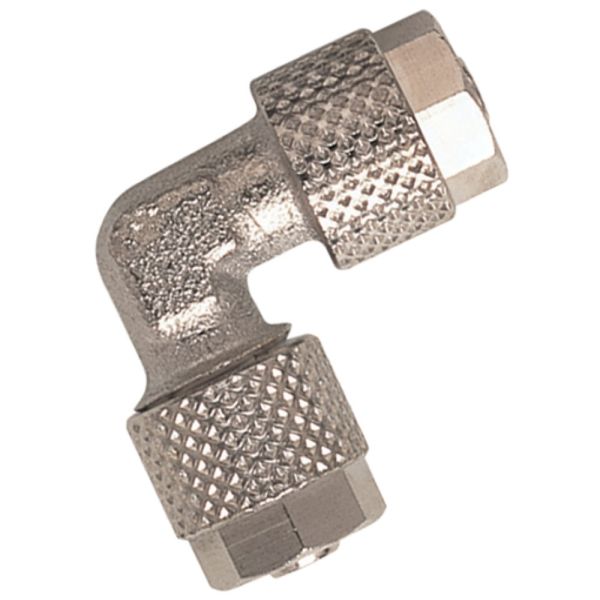

Kelm Elbow 90°
Useful Information
Technical Specification
- Body material: Nickel plated brass
- Temperature range: -20°C to +80°C
- Maximum pressure: 15 bar
- Connection type: Equal tube x tube, 90° elbow
- Compatible tube materials: PA6, PA12 and polyurethane
- Minimum pressure: -0.99 bar
- Fluids: Compressed air, low pressure compatible fluids and liquids
Description
Designed to provide a compact 90 degree directional change within pneumatic tube systems, this elbow delivers secure and reliable tube-to-tube connection using a quick fit push-on mechanism. Manufactured from nickel plated brass for enhanced durability and corrosion resistance, it ensures stable performance across varied industrial environments. Installation is simple, with tubing fed through the locking nut and positioned onto the fitting cone before tightening, offering a consistent seal when used with compatible plastic tube materials.
Key Features & Benefits
- Compact directional change: Enables a 90 degree turn without compromising flow integrity
- Durable construction: Nickel plated brass body provides strength and resistance to wear
- Secure sealing: Supports airtight connections using compatible pneumatic tube types
- Quick installation: Push-on design simplifies assembly and system maintenance
- Wide compatibility: Suitable for PA, polyurethane and other common pneumatic tubing materials
- Reliable performance: Rated for temperatures from -20°C to +80°C and pressures up to 15 bar

| Product Code | Tube | L | CH |
| 370307 | 6/4 | 20.6 | 8 |
| 370308 | 8/6 | 21.9 | 9 |
| 370309 | 10/8 | 25.5 | 11 |
| 370310 | 12/10 | 27 | 13 |
