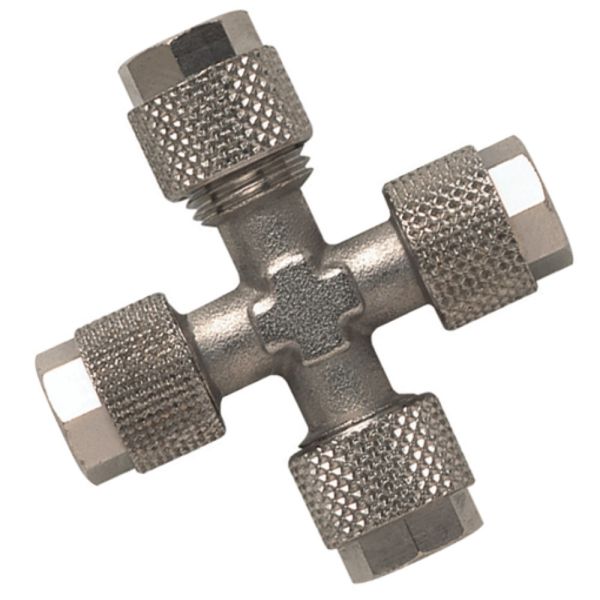

Kelm Cross 90°
Useful Information
Technical Specification
- Body material: Nickel plated brass
- Temperature range: -20°C to +80°C
- Maximum pressure: 15 bar
- Connection type: Equal tube x tube cross, 90 degree
- Compatible tube materials: PA6, PA12 and polyurethane
- Minimum pressure: -0.99 bar
- Fluids: Compressed air, low pressure compatible fluids and liquids
Description
This cross fitting provides a dependable four way tube connection, enabling two perpendicular flow paths within pneumatic systems. Manufactured from nickel plated brass, it offers excellent mechanical strength and corrosion resistance for long service life in industrial environments. The quick fit push on design ensures easy installation, with tubing fed through the locking nut and onto the fitting cone before tightening. Suitable for a wide range of compatible plastic tubing, it delivers reliable sealing performance across varied temperatures and pressures.
Key Features & Benefits
- Four way distribution: Creates two intersecting tube paths for efficient system layout
- Durable construction: Nickel plated brass body offers robust resistance to wear and corrosion
- Secure sealing: Maintains consistent airtight performance when used with compatible tubing materials
- Quick fit assembly: Push on mechanism simplifies installation and maintenance processes
- Wide material compatibility: Suitable for PA, polyurethane and other pneumatic tube types
- Strong operating capability: Performs reliably from -20°C to +80°C with a maximum pressure of 15 bar
| Product Code | Tube | L | CH |
| 370328 | 6/4 | 41.6 | 8 |
| 370329 | 8/6 | 44.4 | 9 |
| 370330 | 12/10 | 58 | 13 |
| 370331 | 15/12.5 | 64 | 17 |
