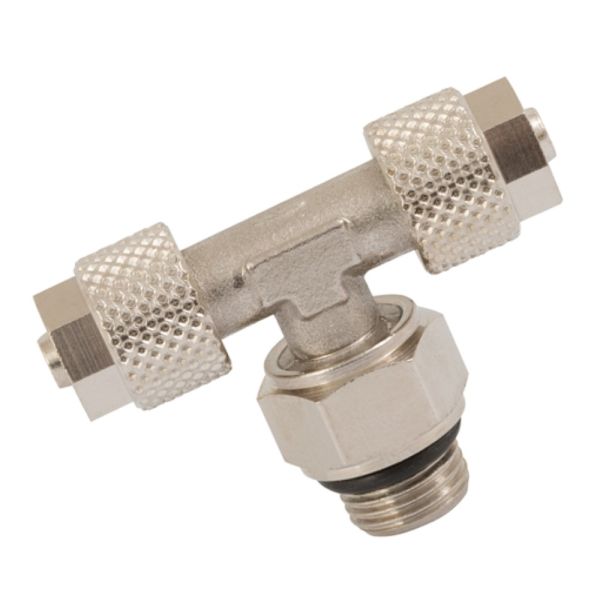

Kelm Swivel Stud Tee 90° Branch M
Useful Information
Technical Specification
- Body Material: Nickel plated brass
- O-Ring Material: NBR70
- Temperature Range: -20° to +80°
- Maximum Pressure: 15 bar
- Thread Standard: BSPP, ISO 228 Class A
- Compatible Fluids: Compressed air, low pressure compatible fluids
- Tube Compatibility: PA6, PA12 and polyurethane
- Minimum Pressure: -0.99 bar
- Fitting Type: Swivel stud tee M, not to be used as a revolving joint
Description
This 90 degree branch swivel stud tee provides a secure push fit solution for pneumatic circuits that require a durable and compact T-connection. The nickel plated brass body delivers long term resistance against corrosion and mechanical wear, while the NBR70 O-ring ensures reliable sealing under varying operating pressures and temperatures. Although the swivel feature assists with installation alignment, it is not intended for continual rotation. Compatible with a wide range of plastic tubing, it is designed to integrate seamlessly with Kelm pneumatic systems.
Key Features & Benefits
- High durability: Nickel plated brass body provides strong resistance to corrosion and wear
- Reliable sealing: NBR70 O-ring ensures consistent sealing across the full operating range
- Convenient installation: Swivel feature aids alignment during assembly without acting as a rotating joint
- Flexible system integration: Suitable for use with PA6, PA12 and polyurethane tubing
- Stable performance: Rated for 15 bar and temperatures from -20° to +80°
- Efficient branching: Tee configuration allows clean and accurate division of pneumatic lines
| Product Code | Tube | A | B | L1 | L2 | CH1 | CH2 |
| 370345 | 6/4 | 1/8 | 6 | 41.2 | 22 | 8 | 13 |
| 370346 | 8/6 | 1/8 | 6 | 43.2 | 24 | 9 | 13 |
| 370347 | 8/6 | 1/4 | 8 | 43.2 | 27.5 | 9 | 16 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
