Kelm Stud F
Useful Information
Technical Specification
- Body Material: Nickel plated brass
- Temperature Range: -20°C to +80°C
- Maximum Pressure: 15 bar
- Thread Standard: BSPP parallel gas in conformity with ISO 228 Class A
- Compatible Fluids: Compressed air, compatible low pressure fluids and liquids
- Tube Compatibility: PA6, PA12, polyurethane
- Minimum Pressure: -0.99 bar
- Fitting Type: Female stud, quick fit
Description

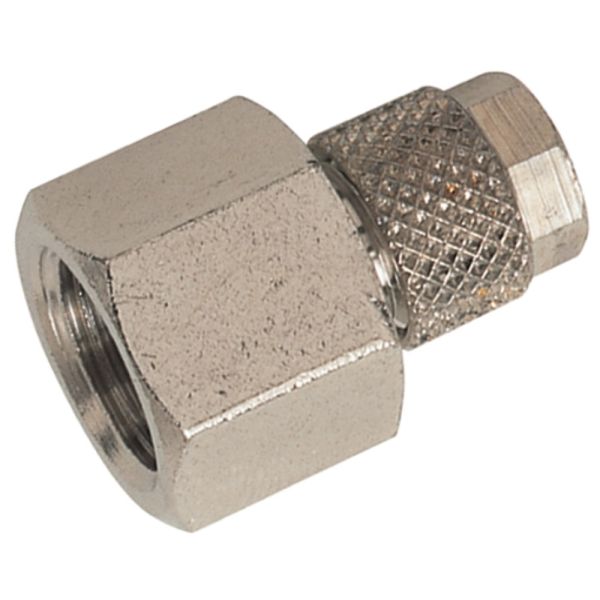

Designed for secure pneumatic connections, this female stud fitting delivers reliable performance within a compact and robust design. Manufactured from nickel plated brass, it resists corrosion and ensures long term durability in demanding applications. The quick fit mechanism allows efficient assembly by feeding the tube through the locking nut and onto the fitting cone, supporting smooth and consistent installation. Fully compatible with Kelm pneumatic components and suitable plastic tubing, it provides a dependable solution for compressed air systems.
Key Features & Benefits
- Strong construction: Nickel plated brass body ensures durability and corrosion resistance
- Efficient installation: Quick fit design enables straightforward tube connection with a consistent seal
- Wide operating range: Suitable for temperatures from -20°C to +80°C and pressures up to 15 bar
- Reliable performance: Parallel BSPP thread manufactured to ISO 228 Class A for secure connection integrity
- System compatible: Works seamlessly with Kelm pneumatic products and recommended tubing materials
- Versatile use: Suitable for compressed air and compatible low pressure fluids for flexible application coverage
| Product Code | Tube | A (inch) | B | L | CH |
| 370234 | 6/4 | 1/8 | 8.5 | 23.3 | 14 |
| 370235 | 6/4 | 1/4 | 11 | 27 | 17 |
| 370236 | 6/4 | 3/8 | 11.5 | 28 | 22 |
| 370237 | 8/6 | 1/8 | 8 | 24.7 | 14 |
| 370238 | 8/6 | 1/4 | 11 | 28.7 | 17 |
| 370239 | 8/6 | 3/8 | 11.5 | 29.2 | 22 |
| 370240 | 8/6 | 1/2 | 15.5 | 33 | 24 |
| 370241 | 10/8 | 1/4 | 11 | 30.5 | 17 |
| 370242 | 10/8 | 3/8 | 11.5 | 31 | 22 |
| 370243 | 10/8 | 1/2 | 15.5 | 34.5 | 24 |
| 370244 | 12/10 | 3/8 | 11.5 | 32.5 | 22 |
