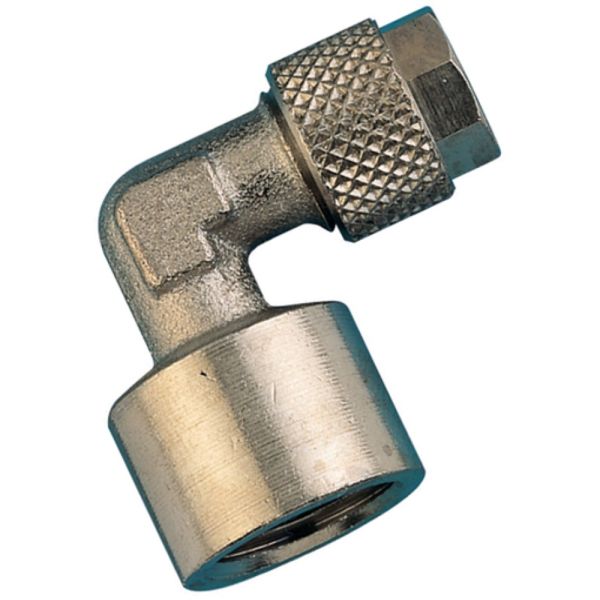

Kelm Stud Elbow 90° F
Useful Information
Technical Specification
- Body Material: Nickel plated brass
- Temperature Range: -20°C to +80°C
- Maximum Pressure: 15 bar
- Thread Standard: BSPP parallel gas in conformity with ISO 228 Class A
- Compatible Fluids: Compressed air, compatible low pressure fluids and liquids
- Tube Compatibility: PA6, PA12 and polyurethane
- Minimum Pressure: -0.99 bar
- Fitting Type: Female stud 90° elbow, quick fit
Description
This 90 degree stud elbow offers a secure and reliable push fit connection for pneumatic systems where directional change is required within restricted spaces. The nickel plated brass body provides long term durability. Suitable for use with multiple plastic tube types, it integrates seamlessly with wider Kelm pneumatic components.
Key Features & Benefits
- Durable construction: Nickel plated brass provides corrosion resistance and long service life
- Versatile compatibility: Suitable for PA6, PA12 and polyurethane tubing
- Optimised performance: Rated for pressures up to 15 bar and temperatures from -20° to +80°
- Precise installation: BSPP female thread ensures an accurate and dependable connection
- Compact bend design: 90 degree elbow facilitates neat routing in confined areas
| Product Code | Tube | A (inch) | B | L1 | L2 | CH |
| 370311 | 5/3 | 1/8 | 8.5 | 20.6 | 18 | 8 |
| 370312 | 6/4 | 1/8 | 8.5 | 20.6 | 18 | 8 |
| 370313 | 6/4 | 1/4 | 10.5 | 21 | 21 | 9 |
| 370314 | 8/6 | 1/8 | 8.5 | 21.9 | 19 | 9 |
| 370315 | 8/6 | 1/4 | 10.5 | 23.4 | 21 | 9 |
| 370316 | 10/8 | 1/4 | 10.5 | 25.5 | 22.5 | 11 |
| 370317 | 10/8 | 3/8 | 11.5 | 28 | 27 | 16 |
