This Type E stainless steel camlock fitting features a barbed hose tail designed to create a secure, leak-resistant grip within flexible hoses. Manufactured from 316 stainless steel, it provides outstanding resistance to corrosion, making it ideal for use in aggressive environments or applications requiring hygienic handling. The cam and groove design enables quick, tool-free connection to compatible couplings.
Key Features & Benefits
316 stainless steel construction for durability and corrosion resistance
Barbed hose tail ensures tight fit with flexible hose assemblies
Compatible with camlock couplers for fast, tool-free hose connection
Rated to 17 bar for high-pressure applications
Suitable for chemical, food-grade, marine, and industrial systems

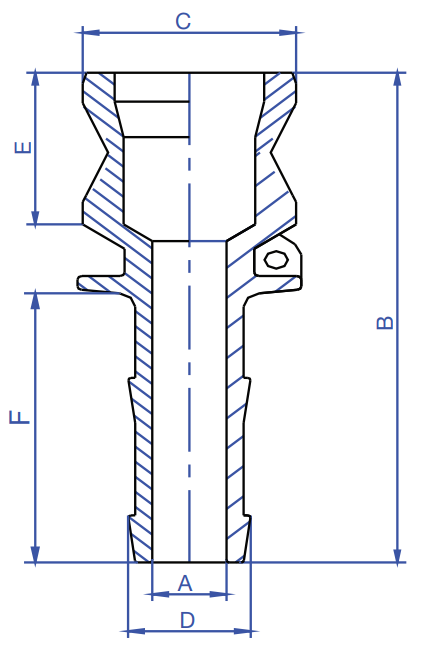

SKU
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
F (mm)
Pressure (psi)
358470
8
74
24
14
23
41
250
358471
15
87
32
21
25
50
250
358472
22
98
37
27
28
58
250
358473
27
113
45
33
37
60
250
358474
34
114
53
40
37
63
150
358475
46
131
63
53
46
70
150
358476
60
140
76
67
46
80
150
358477
70
154
91
78
42
90
125
358478
93
164
120
103
44
99
125
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
