This Type B camlock lever coupling in stainless steel offers a robust and corrosion-resistant solution for hose connection using a male BSPT thread. Constructed from high-quality 316 stainless steel, it is suited for demanding environments such as chemical processing, food production, and marine operations. The Buna seal ensures reliable sealing under pressure, while the lever mechanism provides a fast, secure, and tool-free connection to compatible camlock fittings.
Supplied with a Buna seal, other seal materials and replacements are available here.
Key Features & Benefits
316 stainless steel construction for maximum durability and corrosion resistance
Male BSPT thread for secure and standardised connection
Buna seal supports leak-free operation under pressure
Lever mechanism allows quick and easy tool-free coupling
Rated for working pressures up to 17 bar
Ideal for hygienic, industrial, and marine fluid transfer systems

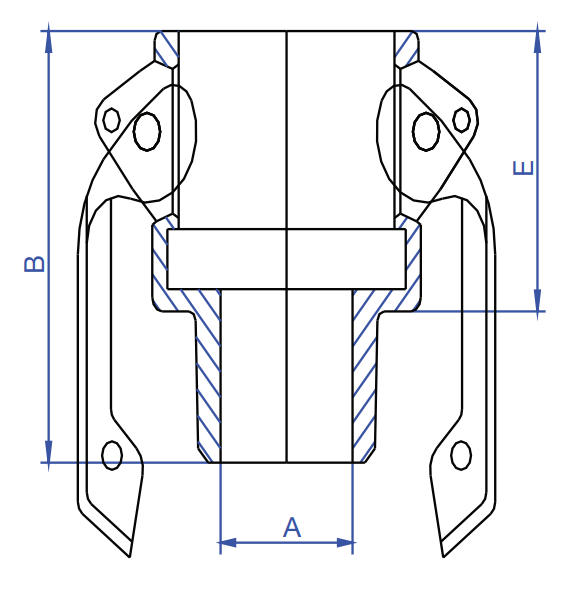

SKU
A (mm)
B (mm)
C (mm)
Pressure (psi)
358426
14
44
28
250
358427
20
45
29
250
358428
26
55
36
250
358429
34
64
44
250
358430
39
68
44
150
358431
51
72
48
150
358432
63
84
52
150
358433
75
86
53
125
358434
102
87
54
125
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
