This Type D camlock lever coupling features a female BSPP thread and is manufactured from high-quality 316 stainless steel for excellent corrosion resistance and long-term durability. Designed for rapid hose connections, the cam and groove mechanism enables secure, tool-free coupling. Fitted with a Buna seal, this component ensures leak-free performance, making it suitable for use in demanding industrial, chemical, and food-grade applications.
Supplied with a Buna seal, other seal materials and replacements are available here.
Key Features & Benefits
Constructed from 316 stainless steel for superior strength and chemical resistance
Female BSPP thread ensures compatibility with standard fittings
Buna seal offers reliable leak protection under pressure
Lever lock design allows fast, tool-free connection and disconnection
Handles working pressures up to 17 bar
Ideal for hygienic, industrial, and marine hose systems
SKU

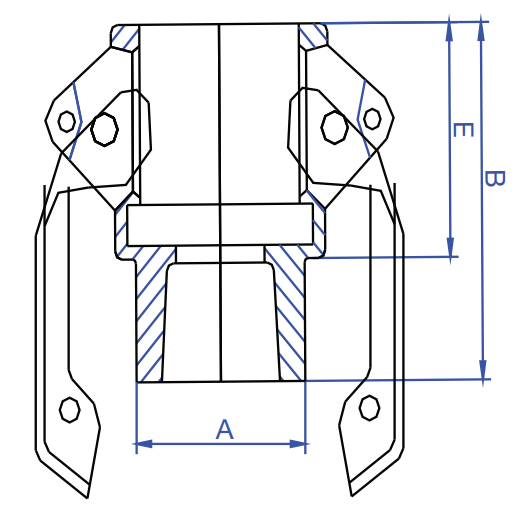

A (mm)
B (mm)
E (mm)
Pressure (psi)
358444
26
43
29
250
358445
30
45
30
250
358446
36
55
36
250
358447
45
65
44
250
358448
52
65
44
150
358449
63
71
49
150
358450
80
80
53
150
358451
93
83
53
125
358452
121
85
55
125
