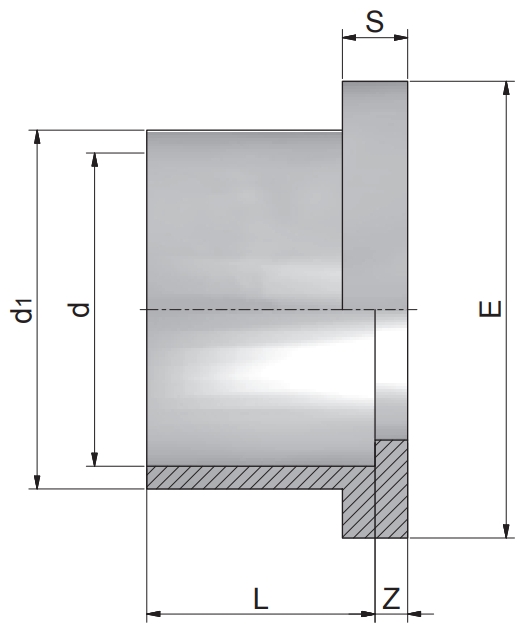

ABS Stub

• Material: Acrylonitrile butadiene styrene (ABS)
• Colour: Light grey
• Size range: 1/2 inch to 8 inch
• Connection type: Plain solvent weld stub flange with serrated sealing face
• Joining method: Solvent cement with ABS cleaner
• Approvals: WRAS approval 1703070 where applicable, BSI Kitemark KM60042
• Temperature range: -40°C to 60°C
• Standards: BS 5392, BS 5391, EN 10226 1, DIN 2999, DIN DVS 2204 3
• Chemical resistance: Suitable for diluted inorganic acids, salts, animal fats, oils and organic acids, not suitable for petrol, alcohol, organic solvents or vegetable oils
• Applications: Flanged connections on ABS pipelines, pump manifolds, tank outlets, process equipment and systems requiring detachable joints

This ABS stub flange is designed to create a strong and detachable flanged joint within an ABS pipeline. The plain end is solvent welded to ABS pipe using solvent cement and cleaner, forming a permanent and reliable bond. Once assembled with a backing ring, gasket and appropriate nuts and bolts, the flange provides a secure mechanical connection that can be easily dismantled for maintenance or system modification. The serrated sealing face enhances gasket grip, supporting a dependable seal across a wide range of industrial applications. Manufactured from robust ABS, the stub offers excellent impact resistance, low moisture absorption and consistent performance within its operating temperature range.

• Enables flanged connections: Ideal for joining pipes to pumps, valves, tanks or other equipment
• Detachable joint design: Allows system sections to be unbolted for maintenance or replacement
• Strong solvent welded attachment: Plain end bonds securely to ABS pipe
• Serrated sealing face: Improves gasket seating and sealing reliability
• Durable ABS construction: Lightweight, corrosion free and impact resistant
• Chemical tolerant: Suitable for many diluted process chemicals and industrial fluids
• WRAS and Kitemark approved: Independently verified for quality and performance
