This EPDM stub flange gasket is designed to create a reliable seal between PVC or ABS stub flanges and a mating flange surface. Installed between the stub flange face and the opposing flange or blanking plate, it ensures effective sealing when used with bolt sets.
Manufactured from EPDM rubber, the gasket provides good resistance to water, many chemicals, and weathering, making it suitable for a wide range of industrial applications. Its design complements PVC flanged systems, helping to maintain joint integrity while allowing for routine maintenance or disassembly.
Key Features & Benefits
EPDM material: Provides reliable sealing and resistance to water and many chemicals.
Stub flange compatibility: Designed specifically for use with stub flanges.
Wide standard suitability: Compatible with PN, Table D, Table E, and ASA assemblies.
Simple installation: Fits easily between flange faces during assembly.
Industrial reliability: Suitable for commercial and process pipework systems.

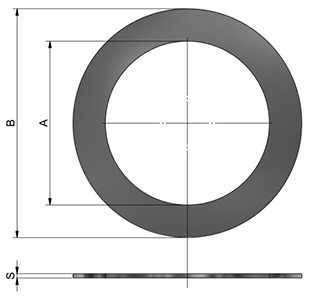

Dimensions
SKU
Nominal Size (inch)
Nominal Size (mm)
A (mm)
B (mm)
S (mm)
354502
1/2
20
20
32
2
354503
3/4
25
24
38.5
2
354504
1
32
33
44
2.5
354505
1 1/4
40
40
59
2
354506
1 1/2
50
50
71
2
354507
2
63
63
88
2
354508
2 1/2
75
75
104
2
354509
3
90
90
123
2
354510
4
110
110
148
3
354511
-
125
125
166
3
354512
5
140
140
186
3
354513
6
160
160
211
3
354514
-
200
200
252
3
354515
8
225
225
269
3
354516
-
250
250
306
3
354517
-
315
315
375
3
