Barrel Nipple Plain x BSP

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: polypropylene
  • Barrel Nipple threaded fitting
  • Pressure rated to 6 bar
  • Manufactured to DIN 16962
  • Available in sizes from 20mm x 1/2" to 63mm x 2"

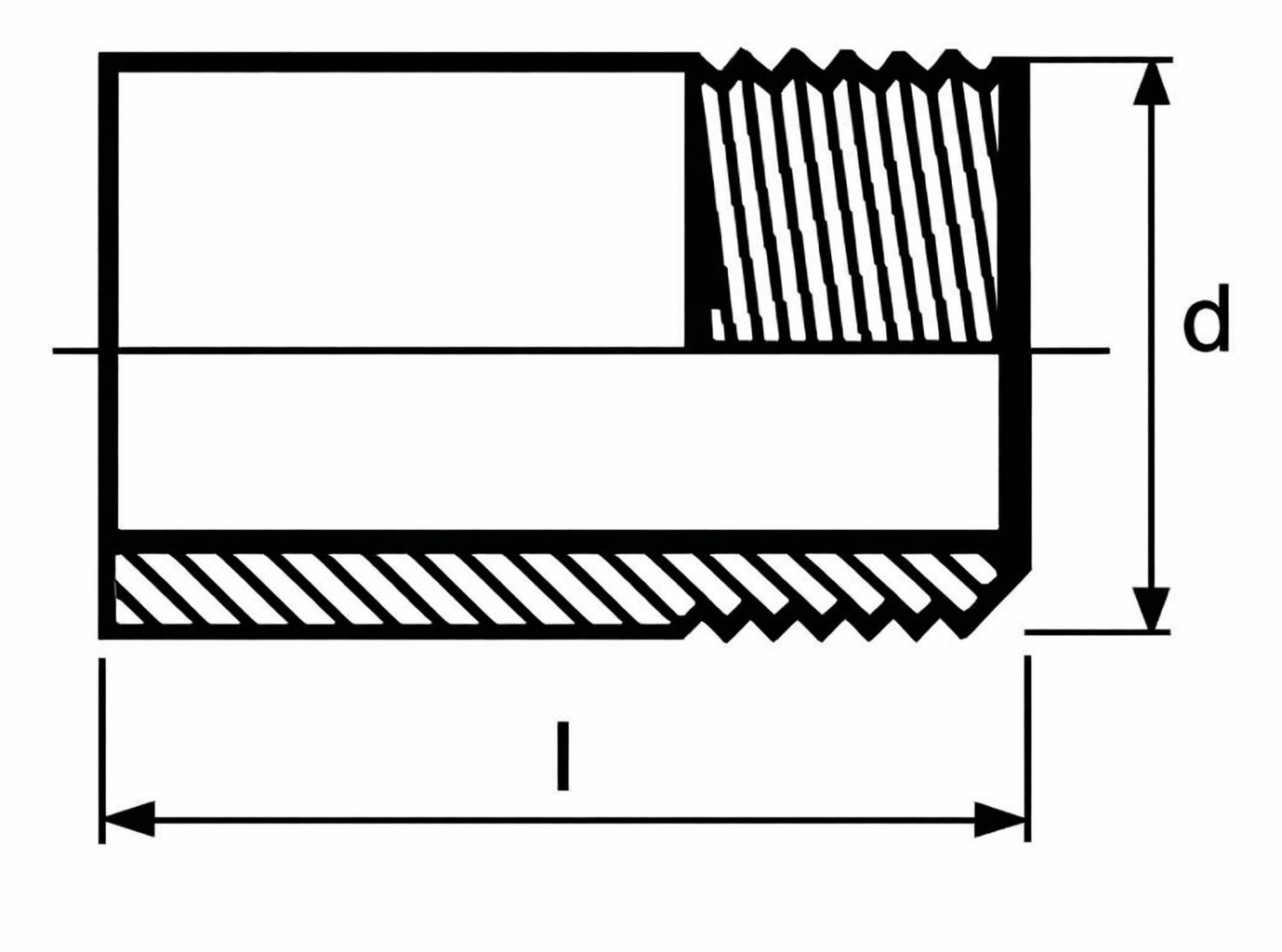

PPh barrel nipple threaded diagram

Product Code d (mm x inch) I (mm) Pressure Rating (bar)
355702 20 x ½ 55 6
355703 25 x ¾ 58 6
355704 32 x 1 65 6
355705 40 x 1 ¼ 68 6
355706 50 x 1 ½ 68 6
355707 63 x 2 76 6



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

These pph barrel nipple fittings are used to connect pph fittings with female ends.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
355702PP Nipple Plain/Thread 20mm x 1/2" £5.23 20% £4.18
355703PP Nipple Plain/Thread 25mm x 3/4" £6.28 20% £5.02
355704PP Nipple Plain/Thread 32mm x 1" £10.59 20% £8.47
355705PP Nipple Plain/Thread 40mm x 1 1/4" £16.83 20% £13.46
355706PP Nipple Plain/Thread 50mm x 1 1/2" £19.37 20% £15.50
355707PP Nipple Plain/Thread 63mm x 2" £23.99 20% £19.19
