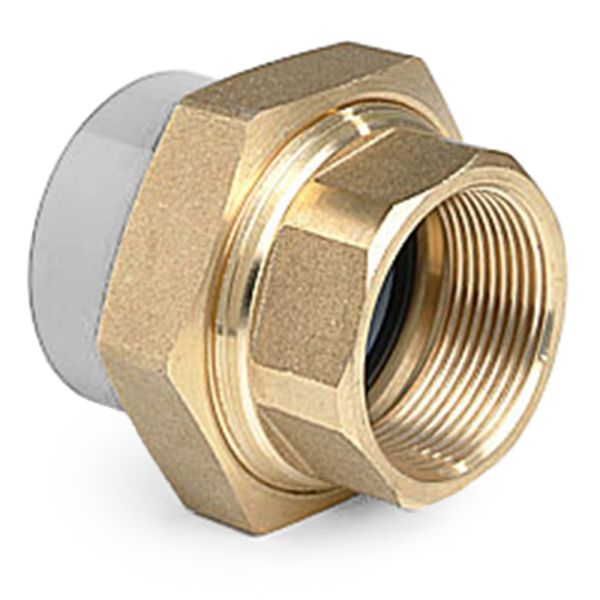

Union Plain x Brass F BSP
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: polyvinyl chloride resin and chlorine
- Union plain/brass female bsp thread fitting
- Pressure rated to 16 bar
- Manufactured to DIN 8063
- Available in sizes from 16mm x 38" to 63mm x 2"
| Product Code | A (mm) | B (mm) | Z1 (mm) | Pressure Rating (bar) |
| 351165 | 34 | 39 | 3 | 16 |
| 351166 | 40 | 46 | 3 | 16 |
| 351167 | 48 | 52 | 3 | 16 |
| 351168 | 55 | 57 | 3 | 16 |
| 351169 | 65 | 64 | 3 | 16 |
| 351170 | 79 | 70 | 3 | 16 |
| 351171 | 88 | 80 | 3 | 16 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Useful Info:
These dp pvcc union fittings are used to join to a piece of Corzan CPVC pipe to provide a threaded brass female connection.
The plain end should be fixed to the pipe using PVCc solvent cement along with PVCc Eco-Cleaner
The threaded female end will connect to a standard bsp threaded fitting.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
