Reducing Tee 90

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: polyvinyl chloride resin and chlorine
  • Plain reducing tee 90° fitting
  • Pressure rated to 16 bar
  • Manufactured to DIN 8063
  • Available in sizes from 25mm to 110mm

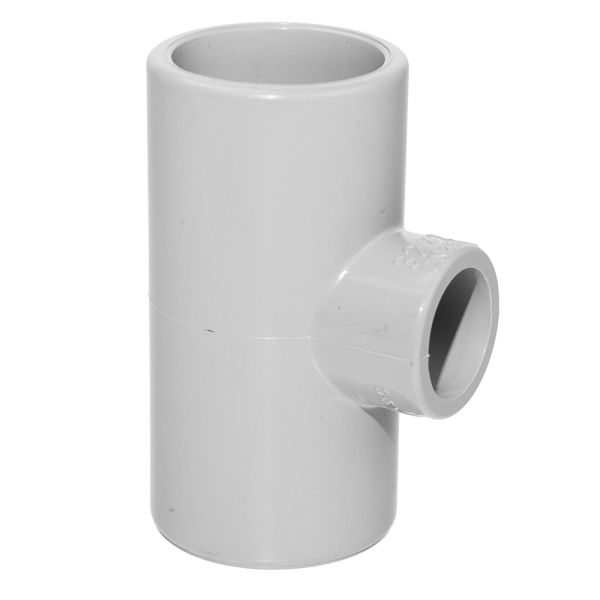

DP PVCc reducing tee 90 plain

Product Code A (mm) B (mm) C (mm) D (mm) Z1 (mm) Pressure Rating (bar)
351099 33 52 30 28 14 16
351100 41 61.5 33.5 28 17.5 16
351101 41 61.5 36.5 34 17.5 16
351102 50 74 38 29 22 16
351103 50 74 41 34 22 16
351104 61 89 46 35 27 16
351105 61 89 49 42 27 16
351106 76 109.5 52.5 36 33.5 16
351107 76 109.5 55.5 43 33.5 16
351108 91 128.5 55 33 40.5 16
351109 109 150.5 62 33 48.5 16
351110 133 183 72 33 61 16



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

These reducing tee 90 corzan cpvc fittings are used to join together three pieces of Corzan CPVC pipe at angle of 90°. PVCc solvent cement should be used along with PVCc Eco-Cleaner to glue the pipe together.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
351099DP PVCc Reducing Tee 90 Plain 25 x 20mm £10.94 30% £7.66
351100DP PVCc Reducing Tee 90 Plain 32 x 20mm £17.74 30% £12.42
351101DP PVCc Reducing Tee 90 Plain 32 x 25mm £17.74 30% £12.42
351102DP PVCc Reducing Tee 90 Plain 40 x 20mm £28.98 30% £20.29
351103DP PVCc Reducing Tee 90 Plain 40 x 25mm £28.98 30% £20.29
351104DP PVCc Reducing Tee 90 Plain 50 x 25mm £38.01 30% £26.61
351105DP PVCc Reducing Tee 90 Plain 50 x 32mm £38.01 30% £26.61
351106DP PVCc Reducing Tee 90 Plain 63 x 25mm £58.96 30% £41.27
351107DP PVCc Reducing Tee 90 Plain 63 x 32mm £58.96 30% £41.27
351108DP PVCc Reducing Tee 90 Plain 75 x 25mm £106.63 30% £74.64
351109DP PVCc Reducing Tee 90 Plain 90 x 25mm £157.83 30% £110.48
351110DP PVCc Reducing Tee 90 Plain 110 x 25mm £213.55 30% £149.49
