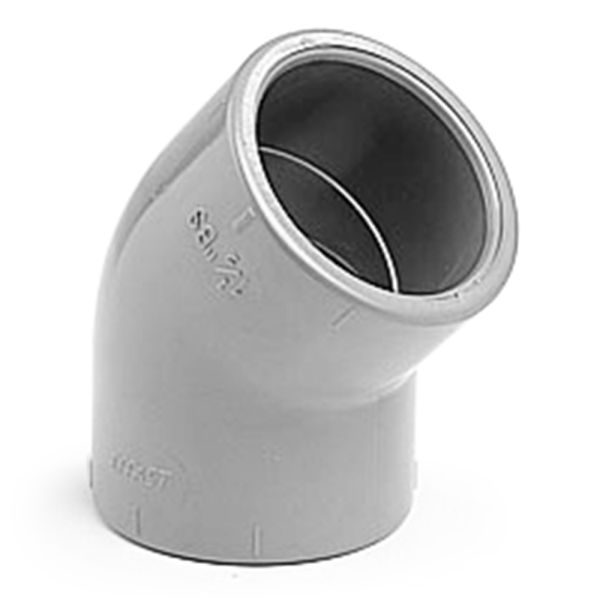

Elbow 45
Technical Specification
- Product type: 45° plain elbow fitting
- Material: Chlorinated polyvinyl chloride (CPVC)
- Manufacturer: Durapipe
- Angle: 45 degrees
- Jointing method: Solvent welding using PVC-C solvent cement and cleaner
- Pressure rating: Up to 16 bar (up to 110mm), 160mm rated to 10 bar
- Size range: 20mm to 160mm
- Manufacturing standard: DIN 8063
- Approvals: WRAS approved, WRc listed
- System compatibility: Corzan CPVC pipe systems
Description
This 45° elbow fitting is designed to introduce a gradual change of direction in Corzan CPVC pipework, helping maintain smoother flow characteristics compared to sharper bends. It is commonly used where reduced turbulence and pressure loss are important, particularly in continuous process and dosing systems.
Manufactured from high-performance Corzan CPVC, the elbow provides excellent resistance to corrosive chemicals, elevated temperatures and pressurised conditions. Solvent welding using PVC-C solvent cement and Eco-Cleaner creates a permanent, leak-tight joint without the need for hot works or specialist welding equipment.
The lightweight construction allows easy positioning during installation, while the smooth internal bore supports efficient flow and minimises scale formation. As part of a fully matched Corzan CPVC system, this fitting contributes to long-term reliability, low maintenance requirements and consistent system performance.
Key Features & Benefits
- Gentle direction change: 45° bend helps reduce turbulence compared to tighter elbows
- Excellent chemical resistance: Suitable for aggressive fluids, acids and alkalis
- Pressure capable: Rated up to 16 bar for most sizes
- WRAS approved: Safe for potable water with no taint risk
- No hot works required: Solvent welding removes the need for welding permits
- Lightweight fitting: Simplifies handling and on-site installation
- Smooth internal profile: Supports efficient flow and lower pressure losses
- Abrasion resistant: Performs well in slurry and erosive applications
- System matched: Fully compatible with Corzan CPVC pipes and accessories
| Product Code | A (mm) | C (mm) | Z1 (mm) | Pressure Rating (bar) |
| 351071 | 28 | 21.5 | 5.5 | 16 |
| 351072 | 34 | 25 | 6 | 16 |
| 351073 | 42.5 | 29.5 | 7.5 | 16 |
| 351074 | 52 | 36.5 | 10.5 | 16 |
| 351075 | 64 | 42.5 | 11.5 | 16 |
| 351076 | 80 | 52 | 14 | 16 |
| 351077 | 90 | 61 | 17 | 16 |
| 351078 | 107 | 72.5 | 21.5 | 16 |
| 351079 | 130 | 87 | 26 | 16 |
| 351080 | 192 | 124 | 38 | 10 |
