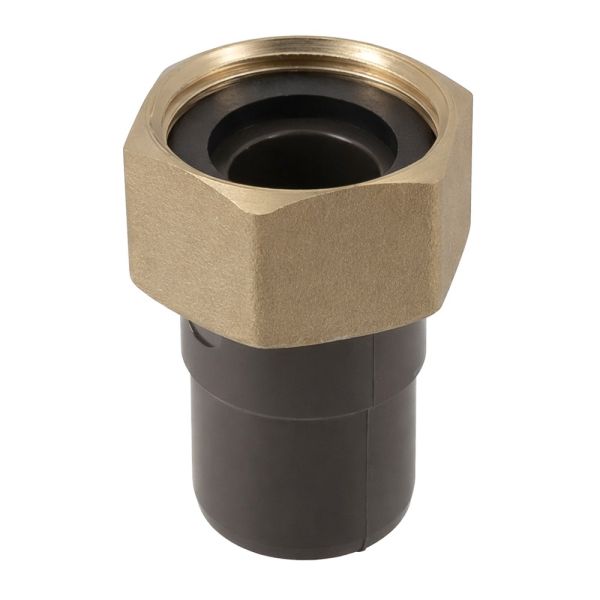

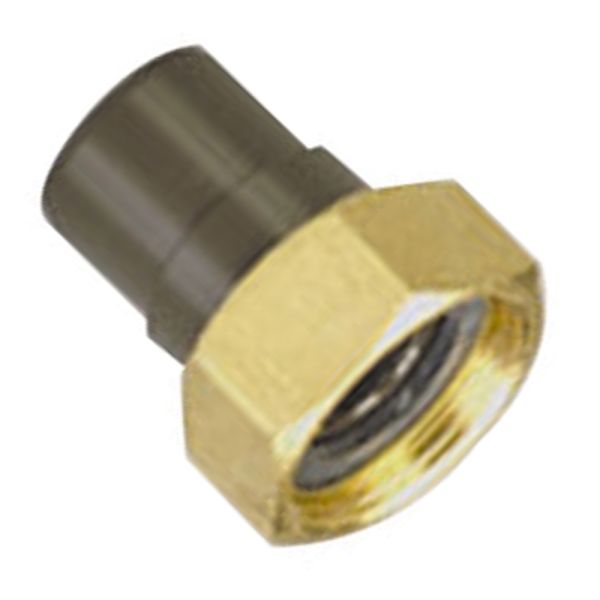

Durapipe HTA Tap Connector
Useful Information
Key Features / Tech Specs:
- Manufactured by Durapipe
- Material: chlorinated polyvinyl chloride (CPVC)
- For use with hot and cold water.
- Temperature Range: 5°C - 90°C
- Pressure Rating: Up to 25 bar
| Product Code | D-G (mm x inch) | Z (mm) | E (mm) | A1 (mm) |
| 354334 | 16-1/2" | 20 | 15 | 24 |
| 354335 | 20-3/4" | 22 | 17 | 29.5 |
| 354336 | 25-1" | 23 | 20 | 36 |
| 354337 | 32-1 1/4" | 26 | 23 | 45 |
| 354338 | 40-1 1/2" | 29 | 27 | 52 |
| 354339 | 50-2" | 31 | 32 | 65.5 |
Working Pressures & Temperatures
| (PN25) 70°C / 10 bar 60°C / 6 bar | (PN16) 70°C / 6 bar 60°C / 4 bar | |
| Temperature °C | Pressure (bar) | Pressure (bar) |
| 5 | 25 | 16 |
| 20 | 25 | 16 |
| 40 | 20 | 12 |
| 60 | 13 | 8 |
| 70 | 10 | 6 |
| 80 | 6 | 4 |
| 90 | 4 | 2 |
Useful Info:
HTA is suitable for the transportation of drinking water.
Its smooth bore prevents limescale build up and is corrosion free.
Lightweight and easy to install.
