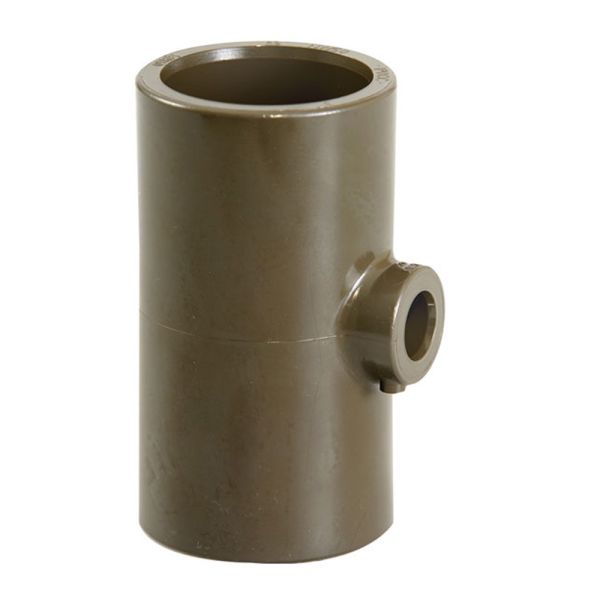

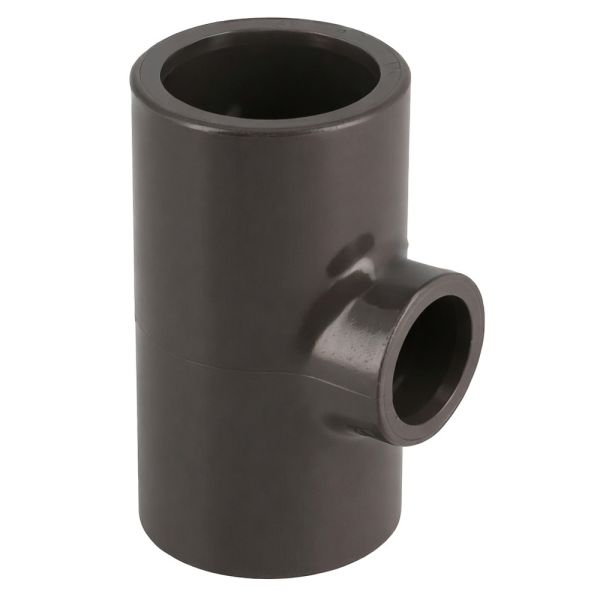

Durapipe HTA Reducing Tee 90°
Technical Specification
- Manufacturer: Durapipe
- Material: Chlorinated polyvinyl chloride (CPVC)
- Application: Hot and cold water distribution
- Connection type: Solvent weld
- Fitting type: 90° reducing tee
- Operating temperature range: 5°C to 90°C
- Maximum working pressure: Up to 25 bar
- Pressure rating at 70°C: 10 bar
- Suitability: Potable (drinking) water
- Fire classification: Euroclass B-s1,d0
- Approvals: WRAS approved
- System compatibility: HTA matched pipe, fittings and valves
Description
The HTA 90° reducing tee is designed to form a perpendicular branch connection where a reduction in pipe diameter is required within pressurised hot and cold water systems. Manufactured from high-performance CPVC, it combines excellent pressure resistance with long-term dimensional stability across a wide temperature range.
The internal design promotes controlled flow transition between different pipe sizes, helping to limit turbulence, manage pressure changes and maintain overall system efficiency. Its smooth bore discourages limescale accumulation and biofilm development, supporting hygienic water distribution and reduced maintenance over the system lifespan.
Manufactured as part of the HTA system by Aliaxis, this reducing tee integrates seamlessly with compatible HTA pipes and valves. Lightweight construction and solvent weld installation allow for fast, reliable assembly without the need for hot works, making it a practical and cost-effective alternative to traditional copper pipework.
Key Features & Benefits
- High pressure rated: Suitable for systems operating up to 25 bar
- Diameter transition: Allows branching to smaller pipe sizes without additional fittings
- WRAS approved: Certified for potable water applications
- Smooth internal profile: Helps reduce turbulence, scale formation and biofilm risk
- Corrosion free construction: Will not rust, pit or degrade over time
- Wide temperature capability: Designed for operation from 5°C to 90°C
- Fire performance: Achieves Euroclass B-s1,d0 classification
- HTA system matched: Engineered specifically for use with HTA pipes and fittings
| Product Code | D-d (mm) | Z (mm) | Z1 (mm) | E (mm) | E1 (mm) | L (mm) | A (mm) | a (mm) |
| 354445 | 25-20 | 12.5 | 13.5 | 18.5 | 16.5 | 62 | 36.5 | 30 |
| 354446 | 32-20 | 17 | 18 | 23 | 16 | 80 | 44.5 | 30 |
| 354447 | 32-25 | 17 | 19 | 23 | 18.5 | 80 | 44.5 | 37 |
| 354448 | 40-20 | 22 | 23 | 26.5 | 16 | 97 | 54 | 30 |
| 354449 | 40-25 | 22 | 23 | 26.5 | 19 | 97 | 54 | 37 |
| 354450 | 40-32 | 22 | 21 | 26.5 | 23 | 97 | 53.5 | 45 |
| 354451 | 50-20 | 27 | 29 | 32 | 17 | 118 | 61.5 | 33 |
| 354452 | 50-25 | 26 | 26 | 31.5 | 19 | 115 | 65 | 37 |
| 354453 | 50-32 | 26 | 26 | 31.5 | 22.5 | 115 | 65 | 45 |
| 354454 | 50-40 | 26 | 26 | 31.5 | 26.5 | 115 | 65 | 53.5 |
| 354455 | 63-20 | 32 | 31.5 | 37.5 | 17.5 | 139 | 80 | 30.5 |
| 354456 | 63-25 | 32 | 31.5 | 37.5 | 20 | 139 | 80 | 37 |
| 354457 | 63-32 | 32 | 32 | 37.5 | 23 | 139 | 80 | 45.5 |
| 354458 | 63-40 | 32 | 32 | 37.5 | 26 | 139 | 80 | 54 |
| 354459 | 63-50 | 32 | 32 | 37.5 | 31 | 139 | 80 | 65 |
| 354460 | 75-20 | 38.5 | 38 | 44.5 | 16 | 166 | 80 | 35 |
| 354461 | 75-25 | 38.5 | 38 | 44.5 | 19 | 166 | 92.5 | 35 |
| 354462 | 75-32 | 38.5 | 38 | 44.5 | 22.5 | 166 | 92.5 | 45 |
| 354463 | 75-40 | 38.5 | 38 | 44.5 | 26.8 | 166 | 92.5 | 54 |
| 354464 | 75-50 | 38.5 | 38.5 | 44.5 | 32 | 166 | 93 | 65 |
| 354465 | 75-63 | 38.5 | 38.5 | 44.5 | 38 | 166 | 93 | 80 |
| 354466 | 90-32 | 46 | 46 | 52 | 23.4 | 196 | 114 | 45 |
| 354467 | 90-40 | 46 | 46 | 52 | 26 | 196 | 114 | 54 |
| 354468 | 90-50 | 46 | 46 | 52 | 32.5 | 196 | 114 | 64 |
| 354469 | 90-63 | 46 | 46.5 | 52 | 38 | 196 | 114 | 80 |
| 354470 | 90-75 | 46 | 46 | 52 | 44 | 196 | 114 | 93 |
| 354440 | 110-40 | 56 | 56 | 62 | 26 | 236 | 135 | 54 |
| 354441 | 110-50 | 56 | 56 | 62 | 31 | 236 | 135 | 65 |
| 354442 | 110-63 | 55.5 | 56.5 | 62 | 38 | 235 | 135.5 | 80 |
| 354443 | 110-75 | 56 | 56 | 62 | 45.5 | 235 | 135 | 93 |
Working Pressures & Temperatures
| Temperature °C | (PN25) 70°C / 10 bar 60°C / 6 bar | (PN16) 70°C / 6 bar 60°C / 4 bar |
| Pressure (bar) | Pressure (bar) | |
| 5 | 25 | 16 |
| 20 | 25 | 16 |
| 40 | 20 | 12 |
| 60 | 13 | 8 |
| 70 | 10 | 6 |
| 80 | 6 | 4 |
| 90 | 4 | 2 |
