Durapipe HTA Stainless Steel Adaptor Nipples
Technical Specification
- Manufacturer: Durapipe
- Material: Chlorinated polyvinyl chloride (CPVC) x stainless steel
- Application: Hot and cold water distribution
- Connection type: Solvent weld socket x stainless steel threaded outlet
- Operating temperature range: 5°C to 90°C
- Maximum working pressure: Up to 25 bar
- Pressure rating at 70°C: 10 bar
- Suitability: Potable (drinking) water
- Fire classification: Euroclass B-s1,d0
- Approvals: WRAS approved
- System compatibility: HTA matched pipe, fittings and valves
Description
HTA stainless steel adaptor nipples are designed to provide a compact and robust transition between HTA CPVC pipework and stainless steel threaded components. They are particularly well suited to applications where enhanced corrosion resistance, hygiene or durability is required, such as plant rooms, commercial buildings and monitored water systems.
The CPVC body delivers excellent resistance to scaling, corrosion and chemical attack, while the stainless steel threaded outlet provides a strong and reliable mechanical connection. The smooth internal bore supports efficient flow characteristics, helping to minimise frictional losses and maintain stable system pressures.
Manufactured as part of the HTA system by Aliaxis, these adaptor nipples integrate seamlessly with compatible HTA pipes and fittings. Solvent weld installation enables fast, clean assembly without hot works, offering a dependable and cost-effective alternative to all-metal transition fittings.
Key Features & Benefits
- High pressure rated: Suitable for systems operating up to 25 bar
- CPVC to stainless steel transition: Ideal where enhanced corrosion resistance is required
- WRAS approved: Certified for potable water applications
- Smooth bore design: Helps reduce friction, scale build-up and biofilm risk
- Wide temperature capability: Designed for use from 5°C to 90°C
- Fire performance: Achieves Euroclass B-s1,d0 classification
- Lightweight construction: Easier handling compared to full metal fittings
- HTA system matched: Engineered specifically for use with HTA pipes and fittings

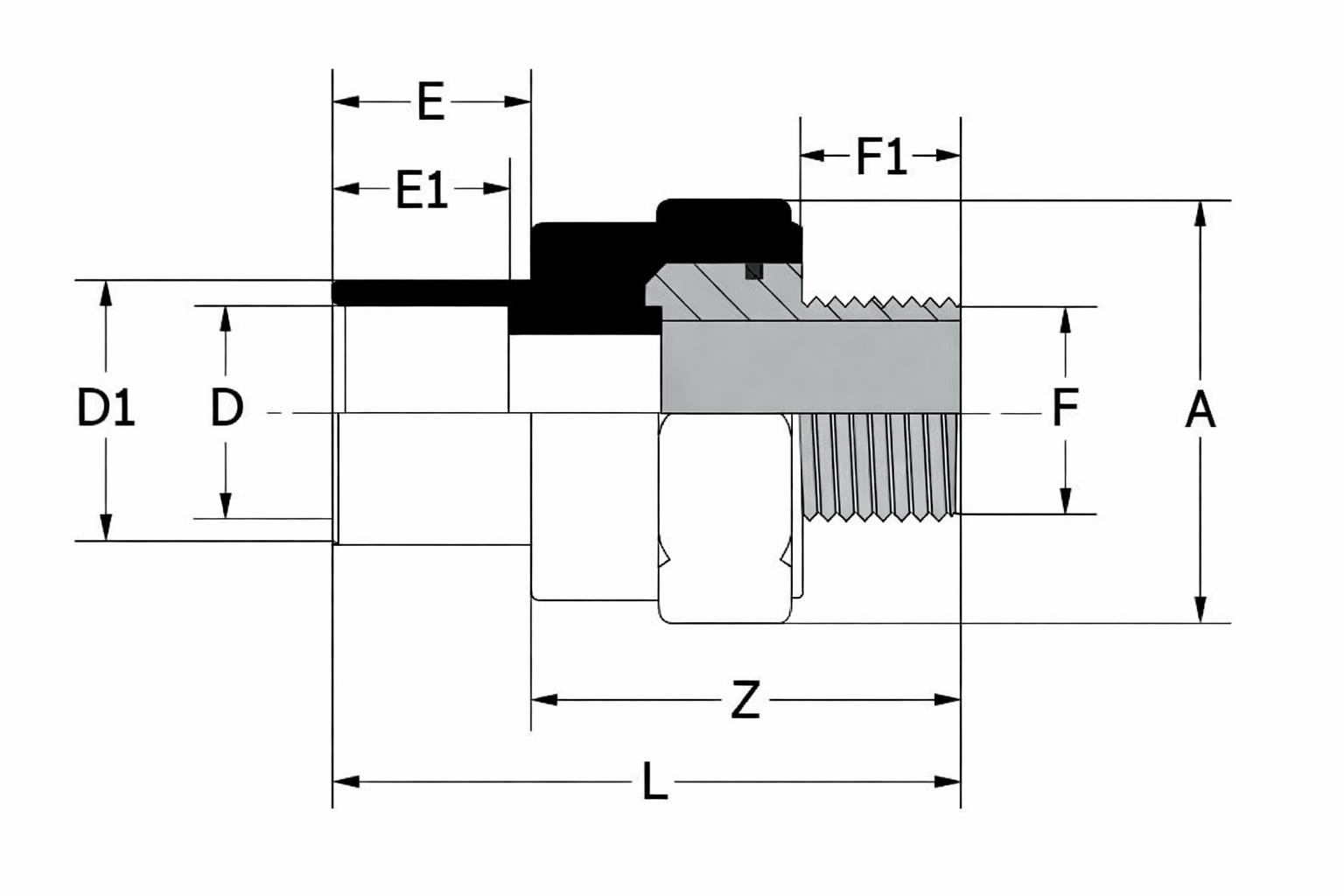

| SKU | D - F | D1 (mm) | Z (mm) | E (mm) | E1 (mm) | A (mm) | L (mm) | F1 (mm) |
| 354348 | 20 - 1/2" | 25 | 41 | 19 | 17 | 36 | 60 | 15 |
| 354349 | 25 - 3/4" | 32 | 43 | 22.5 | 19.5 | 41 | 65.5 | 16 |
| 354350 | 32 - 1" | 40 | 49 | 27 | 23 | 49.5 | 76 | 19.5 |
Working Pressures & Temperatures
| Temperature °C | (PN25) 70°C / 10 bar 60°C / 6 bar | (PN16) 70°C / 6 bar 60°C / 4 bar |
| Pressure (bar) | Pressure (bar) | |
| 5 | 25 | 16 |
| 20 | 25 | 16 |
| 40 | 20 | 12 |
| 60 | 13 | 8 |
| 70 | 10 | 6 |
| 80 | 6 | 4 |
| 90 | 4 | 2 |
