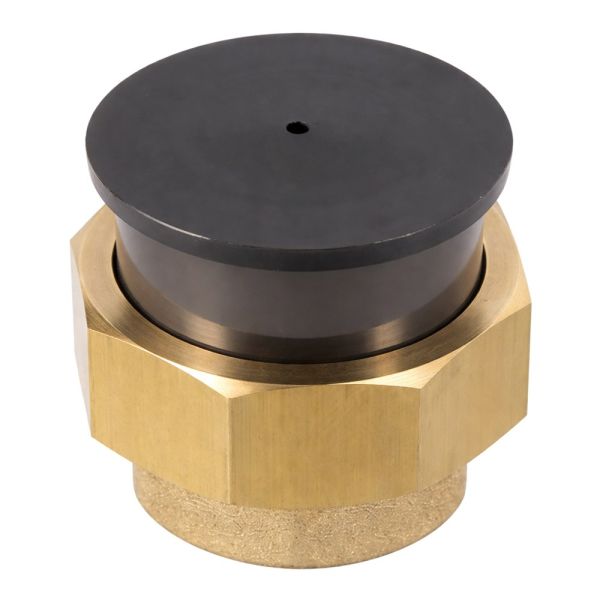

Durapipe HTA 3-Piece Unions M
Technical Specification
- Manufacturer: Durapipe
- Material: Chlorinated polyvinyl chloride (CPVC) x brass
- Application: Hot and cold water distribution
- Connection type: Solvent weld socket x male parallel brass thread
- Union design: 3-piece demountable union
- Thread type: Male BSPP (parallel)
- Operating temperature range: 5°C to 90°C
- Maximum working pressure: Up to 25 bar
- Pressure rating at 70°C: 10 bar
- Suitability: Potable (drinking) water
- Fire classification: Euroclass B-s1,d0
- Approvals: WRAS approved
- System compatibility: HTA matched pipe, fittings and valves
Description

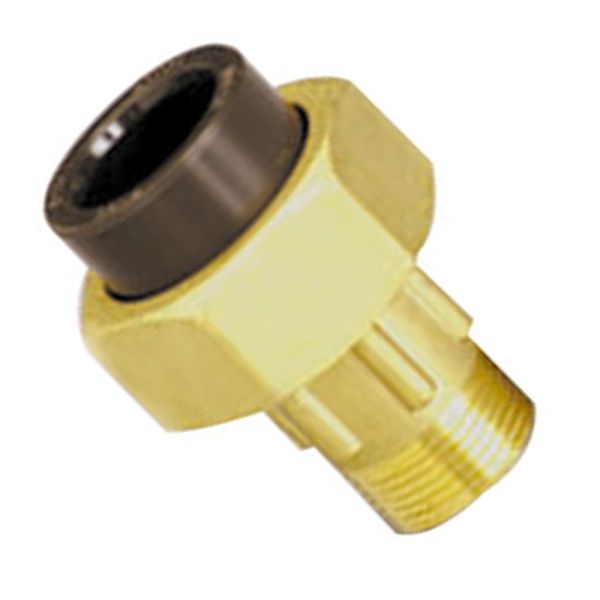

HTA 3-piece unions M are designed to provide a secure yet easily demountable connection between HTA CPVC pipework and male threaded metallic components. The three-piece construction allows sections of pipework or equipment to be disconnected for maintenance or replacement without disturbing the surrounding system.
The CPVC body delivers excellent resistance to corrosion, scale and chemical attack, while the integrated brass male thread provides strength and durability at the mechanical interface. Internally, the smooth bore supports efficient flow and helps minimise frictional losses, contributing to stable system performance.
Manufactured as part of the HTA system by Aliaxis, these unions are engineered to integrate seamlessly with compatible HTA pipes, fittings and valves. Solvent weld installation combined with a demountable union design makes them ideal for plant rooms, valves, pumps and equipment connections where future access may be required.
Key Features & Benefits
- High pressure rated: Suitable for systems operating up to 25 bar
- Demountable connection: 3-piece design allows easy disconnection for maintenance
- CPVC to brass transition: Enables reliable connection to threaded metal equipment
- WRAS approved: Certified for potable water applications
- Corrosion resistant: CPVC construction prevents rust, scaling and degradation
- Smooth internal bore: Helps reduce frictional losses and biofilm risk
- Wide temperature capability: Designed for use from 5°C to 90°C
- HTA system matched: Engineered specifically for use with HTA pipes and fittings
| Product Code | D-G (mm x inch) | Z (mm) | E (mm) | L (mm) | G1 (inch) | A1 (mm) | A2 (mm) |
| 354259 | 20-1/2" | 33 | 18 | 51 | 1 | 36 | 21 |
| 354260 | 25-3/4" | 51 | 19 | 70 | 1 1/4" | 45 | 28 |
| 354261 | 32-1" | 56 | 23 | 79 | 1 1/2" | 52 | 33 |
| 354262 | 40-1 1/4" | 58 | 27 | 85 | 2 | 66 | 42 |
| 354263 | 50-1 1/2" | 63 | 32 | 95 | 2 1/4" | 72 | 48 |
| 354264 | 63-2" | 70 | 38 | 108 | 2 3/4" | 89 | 60 |
Working Pressures & Temperatures
| Temperature °C | (PN25) 70°C / 10 bar 60°C / 6 bar | (PN16) 70°C / 6 bar 60°C / 4 bar |
| Pressure (bar) | Pressure (bar) | |
| 5 | 25 | 16 |
| 20 | 25 | 16 |
| 40 | 20 | 12 |
| 60 | 13 | 8 |
| 70 | 10 | 6 |
| 80 | 6 | 4 |
| 90 | 4 | 2 |
