Check Valve Spring Threaded
Useful Information

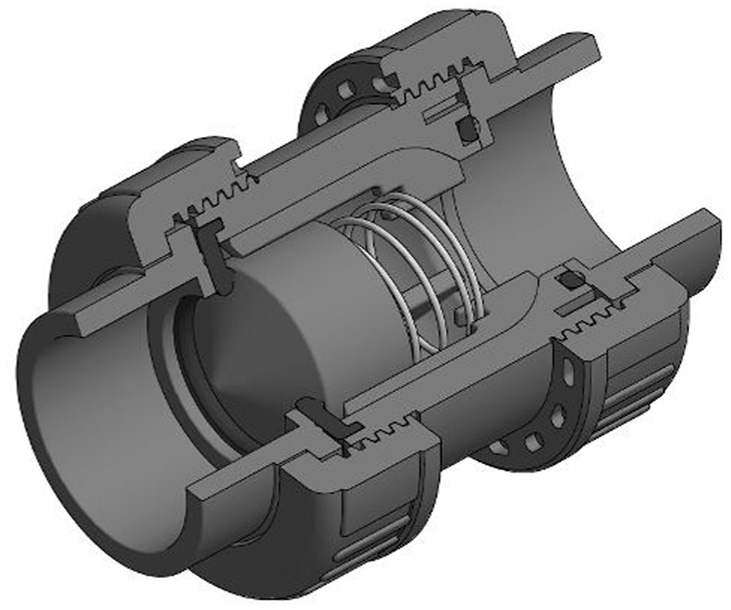

These check valves are manufuctured from PVC with stainless steel springs and threaded ends.
They are quick and easy to install and are available in a range of sizes from 1/2" to 4".
| Material | Polyvinyl chloride - unplasticised (PVCu) |
| Seal Material | EPDM |
| Temperature | 0 - 60°C |
| Max Pressure | 16 bar |
| Notes | Threaded union ends |

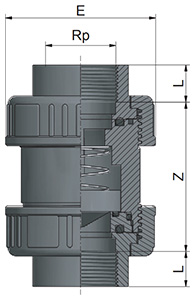

| Product Code | D (Inch) | L (mm) | Z (mm) | H (mm) |
| 356241 | 1/2 | 17 | 46 | 78 |
| 356242 | 3/4 | 20 | 52 | 90 |
| 356243 | 1 | 23 | 60 | 104 |
| 356244 | 1 1/4 | 27 | 68 | 120 |
| 356245 | 1 1/2 | 31 | 78 | 140 |
| 356246 | 2 | 38 | 93 | 169 |
| 356247 | 2 1/2 | 44 | 139 | 227 |
| 356248 | 3 | 51 | 139 | 242 |
| 359976 | 4 | 61 | 160 | 282 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
