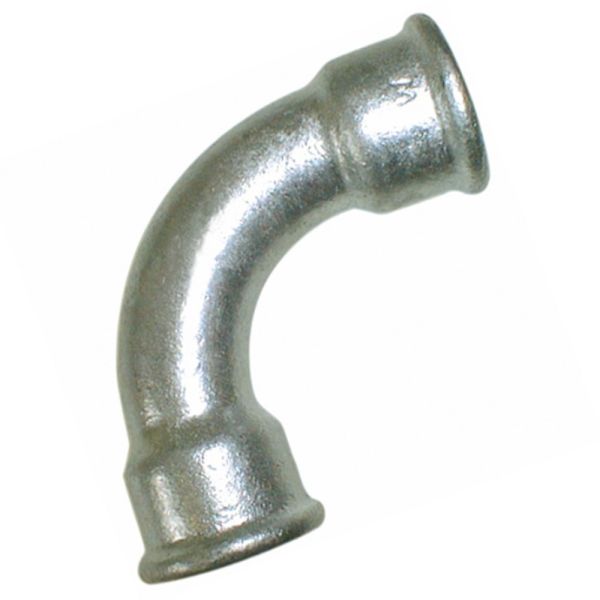

Bends 90 F Thread

Key Features / Tech Specs:

• Material: malleable iron (galvanised)
• Maximum operating pressure: 25 bar (362 psi)
• Operating temperature range: -20°C to 120°C (25 bar) or 300°C (20 bar)
• All thread types are male BSPT and female BSPP in accordance to IS07-1

Useful Info:

Female bends are designed to join two malleable iron pipes or fittings at an angle of 90°.

EE malleable iron pipe fittings are ideally suited for the flow of water, steam, gas or other non aggressive media.

Galvanised fittings are coated with a layer of Zinc, weight relative to surface exceeds 500 g/m² (average layer thickness 70 micron)

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
