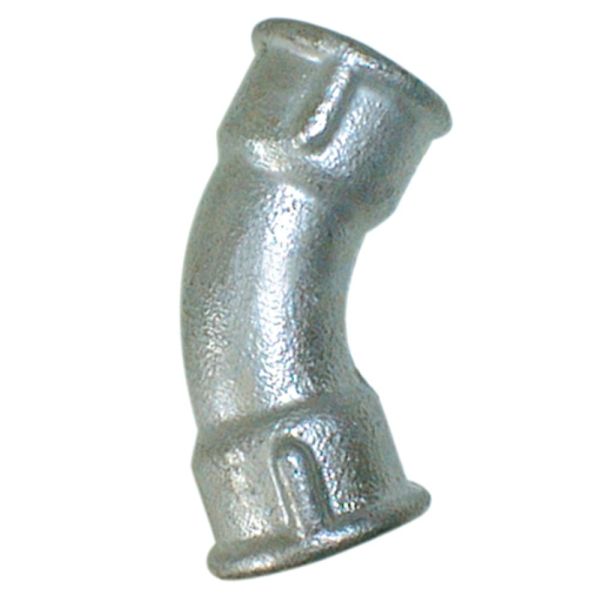

Bends 45 F Thread
Useful Information
Key Features / Tech Specs:
- Material: malleable iron (galvanised)
- Maximum operating pressure: 25 bar (362 psi)
- Operating temperature range: -20°C to 120°C (25 bar) or 300°C (20 bar)
- All thread types are male BSPT and female BSPP in accordance to IS07-1
| Product Code | Size (inch) | A (mm) |
| 384998 | 3/8 | 30 |
| 384999 | 1/2 | 36 |
| 385000 | 3/4 | 43 |
| 385001 | 1 | 51 |
| 385002 | 1 1/4 | 64 |
| 385004 | 2 | 81 |
| 385005 | 2 1/2 | 99 |
| 385006 | 3 | 113 |
Useful Info:
Female bends are designed to join two malleable iron pipes or fittings at an angle of 45°.
EE malleable iron pipe fittings are ideally suited for the flow of water, steam, gas or other non aggressive media.
Galvanised fittings are coated with a layer of Zinc, weight relative to surface exceeds 500 g/m² (average layer thickness 70 micron).
